Engineered by Duo-Gard... Designed by You

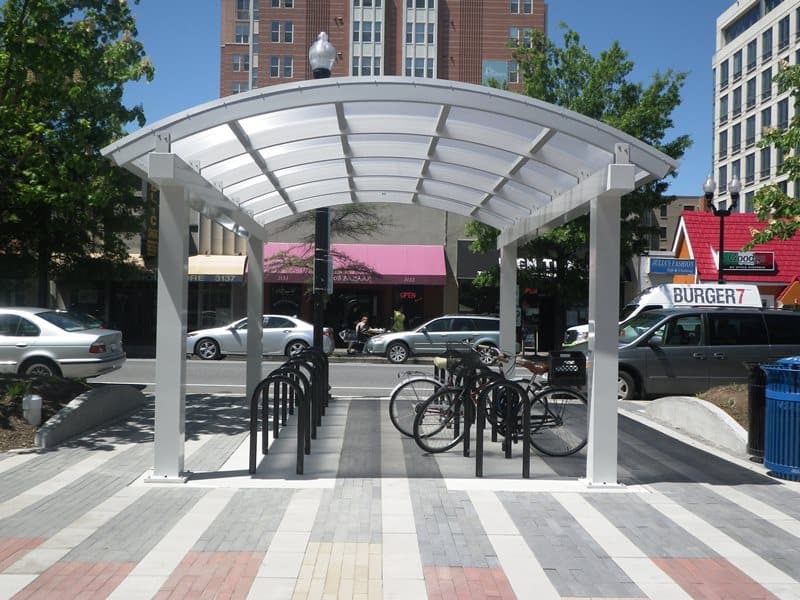

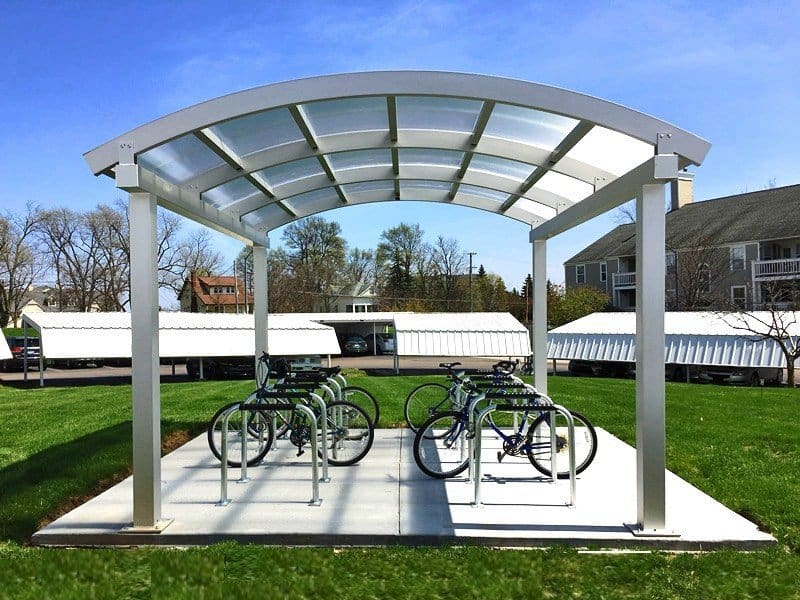

Arlington Model - simplicity with graceful, soaring curves

Roof

  • Multiwall translucent polycarbonate, batten style
  • Opal, clear, bronze – green or blue based on availability
  • Metal standing seam curved
  • Kynar finish – 25-year warranty

Frame

  • Dark bronze, clear anodized, or powder coat
  • Open air canopy or enclosed, and secured options
  • If width is larger than the 14′ standard we would potentially need to use steel
  • Anchor – surface mounted
  • PE Stamps available in all of North America

Standard Model Benefits

  • Designed to address specific bike parking needs
  • Pre-engineered bike shelters
  • Constructed with readily available, standard materials
  • Cost-effective bicycle storage
  • Modular design, easily customizable

Optional Features

  • Standard lighting packages
  • Photovoltaic solar lighting packages
  • Bike Racks
  • Benches
  • Repair Stations

Standard Model Benefits

  • Designed to address specific bike parking needs
  • Pre-engineered bike shelters
  • Constructed with readily available, standard materials
  • Cost-effective bicycle storage
  • Modular design, easily customizable



Available Upon Request

  • Project Pricing
  • Specifications
  • CAD Drawings
  • Bike Parking Layouts
  • Complimentary Bike Parking Plans
  • Technical Product Data

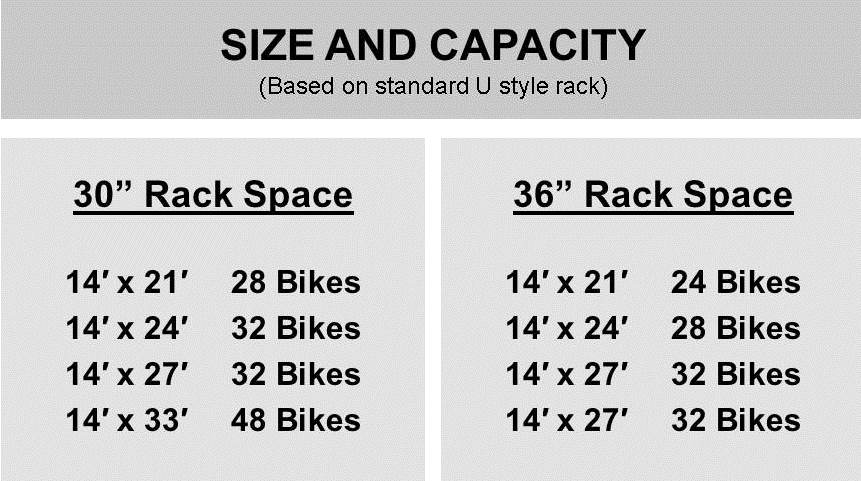

Sizes & Parking Capacities

30″ Rack Spacing

14′ x 21’ 28 Bikes

14′ x 24’ 32 Bikes

14′ x 27′ 32 Bikes

14′ x 33′ 48 Bikes



36″ Rack Spacing

14′ x 21’ 24 Bikes

14′ x 24’ 28 Bikes

14′ x 27′ 32 Bikes

14′ x 33′ 40 Bikes
