Engineered by Duo-Gard... Designed by You

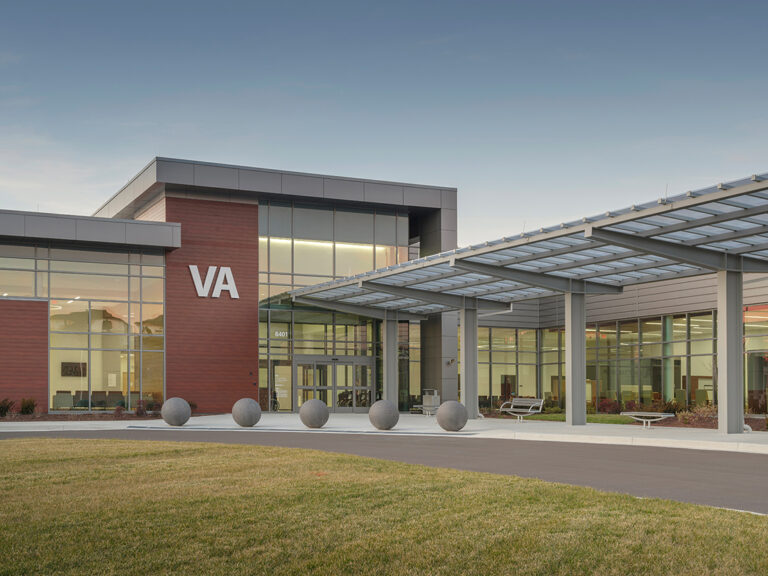

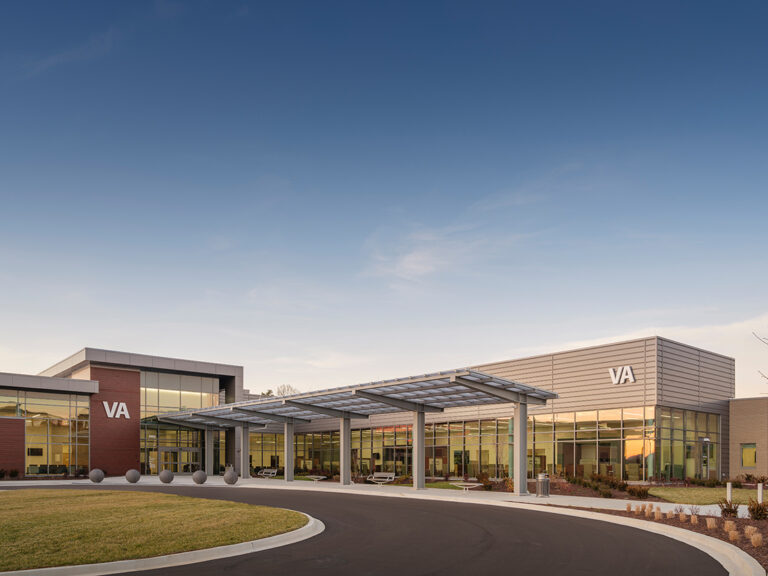

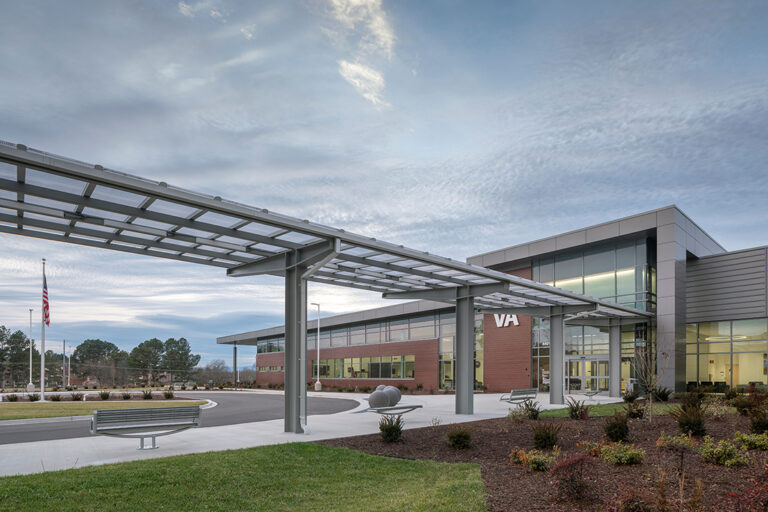

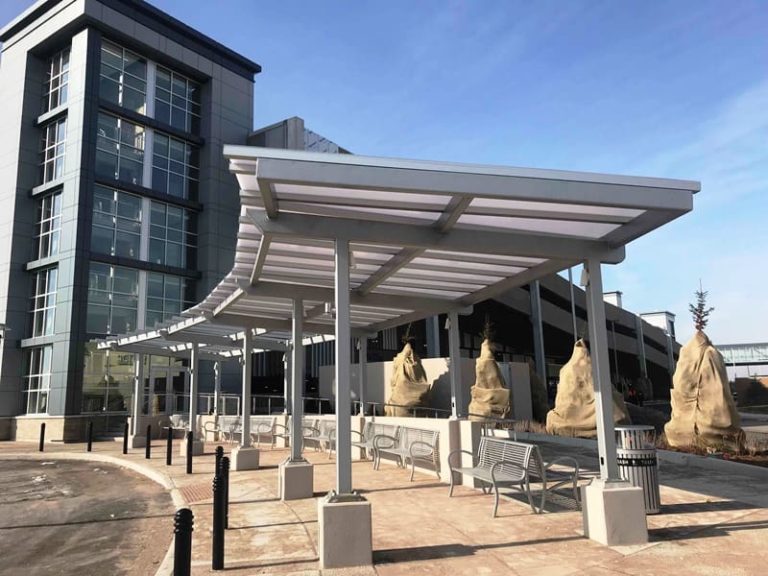

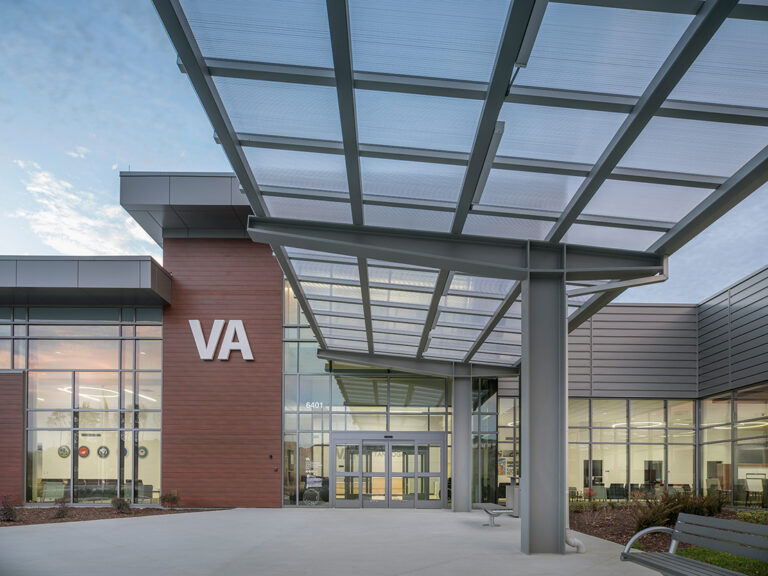

Series 3800 Long-Span Canopy

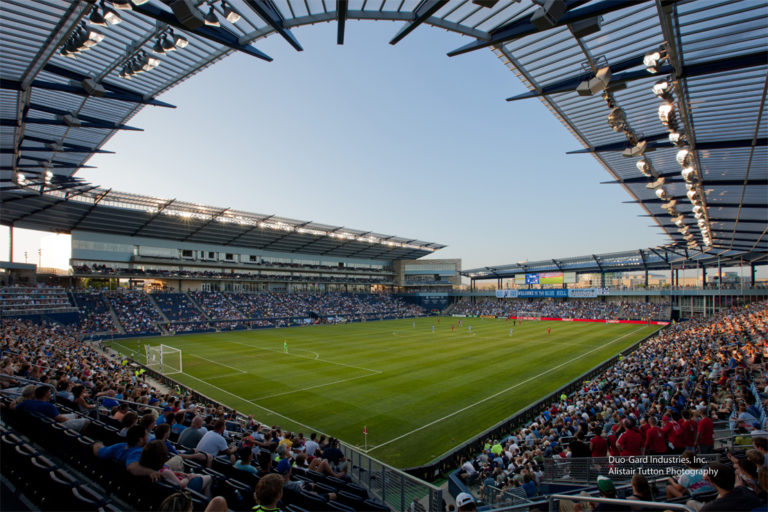

Series 3800 Long-Span is designed to provide for high levels of light transmission. This helps to promote a healthy natural grass field. The system’s ability to span long distances reduces costs by minimizing the need for structural steel. Structural capacity allows for architecturally attractive cantilevers. Designed and tested to withstand extreme wind and snow loading conditions.



Ideal Applications

  • Eliminates support purlins
  • Good clean structural lines
  • Cantilevers
  • Low slope
  • No end channels for smooth visual transitions
  • Extremely durable



System Design

Enjoy exceptional design flexibility with cellular polycarbonate technology. Gain and diffuse natural light as you reduce the sun’s glare and heat gain.

Add optional Lumira aerogel for increased insulation. Or add optional IR filter coating to reduce glare and heat gain.

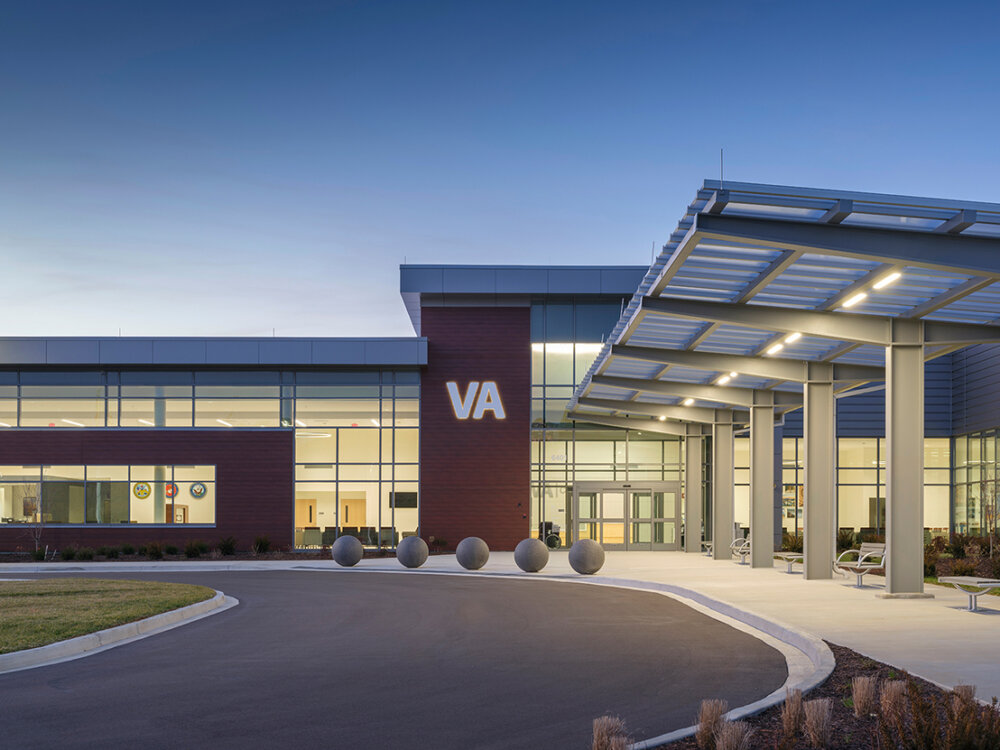

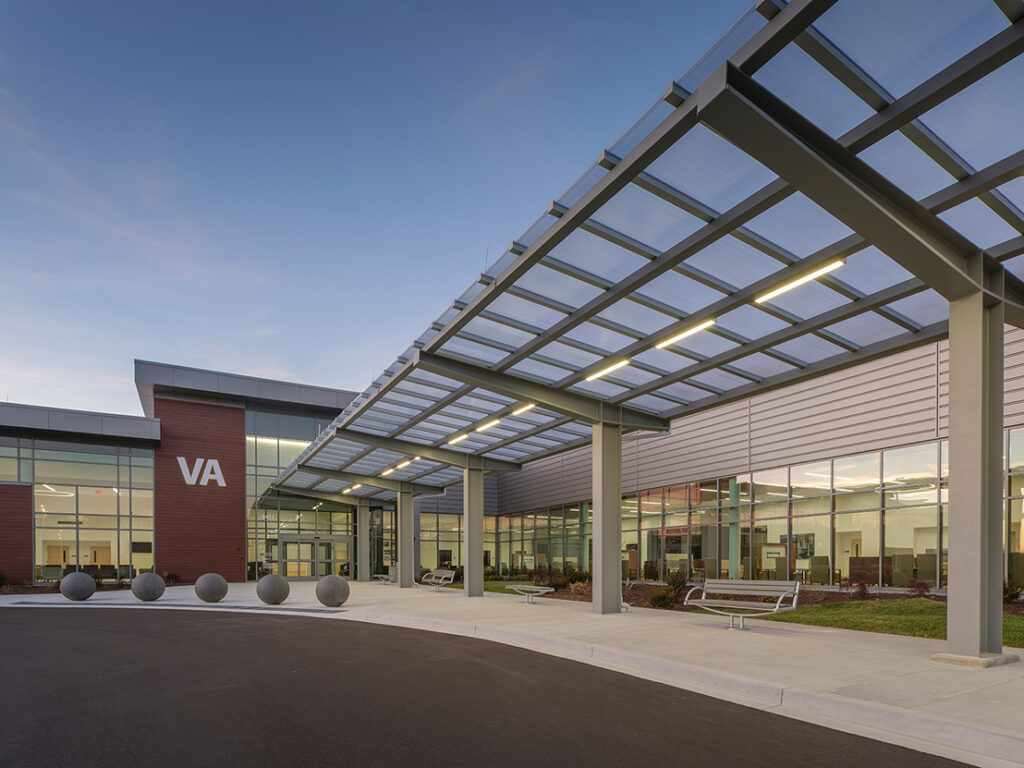

Designed with lighting for spectacular architectural appeal. Take advantage of our cost-free daylight modeling services.



System Components

  • Aluminum or steel structural components
  • Custom design for specific structural loading requirements
  • Stamped drawings & structural calculations in all 50 states



System Skins

Skylight styles are available in mullion or standing seam systems. The skins come with lightweight, durable diffusion panels.

Cellular polycarbonate provides excellent thermal resistance and light quality. Enhance performance with IR coating and/or Lumira aerogel.



Unique Features

  • Design with polycarbonate technology
  • UV stabilization on both sides of the panel provides protection from harmful ultraviolet rays
  • Low profile polycarbonate end caps provide easy water flow in low pitch environments
  • Incorporates a water management system that directs water to the desired location
  • Low profile pressure plate eliminates shadowing
  • The system accommodates a wide variety of panels- options selected based on project objectives
  • System 100% recyclable
  • We provide all engineered services including engineering stamps
