Translucent Canopy | Series 2500 Standing Seam
Series 2500 is a lightweight glazing system with a standing seam appearance. Glazing panel systems can be cold-formed to create true radius canopy designs and are available in a variety of thicknesses and sizes.
For design details on this system, please view the following:
Achieve 360° is a proprietary, full-circle design and fabrication resource from Duo-Gard. We take a holistic approach to ensure that each client receives the highest level of service to create their vision. This approach showcases our unmatched ingenuity and flexibility. Think of Achieve 360° as a pathway to a real-time performance meter and project compass to meet your project goals.
Unique Features
- Sloped and curved canopy applications
- Panels can be cold formed to create true radius
- Panels available in 2’ nominal widths
- 20mm panel thickness
- Minimum 2:12 slope required
- Standing seam design aesthetic
- Glazing is UV protected on both sides
- Lightweight glazing systems require less canopy substructure, helping reduce overall costs
Turnkey Solutions
- Design services ensure code compliance and material optimization
- Estimates and budget pricing
- Drawings and specifications
- Ground-up structural engineering and fabrication in steel and aluminum
- Glazing system engineering and fabrication
- Installation services
- Installation training and supervision
Panel Options
- Multi-color Panels/Matte Finish
- Standard Gloss
- Clear and Opal Panels
- IR filter to reduce heat transmission
Photo Gallery
1706-21

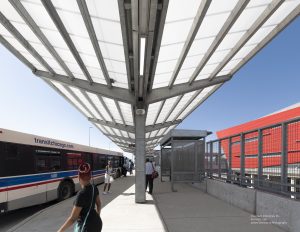

CTA 95th Street Station, Chicago, IL
CTA 95th Street Station, Chicago, IL
1307-9
Rogers Park Montessori School, Chicago, IL
Rogers Park Montessori School, Chicago, IL
Morgan/Lake CTA Station
CTA Morgan Station, Chicago, IL
