Polycarbonate Technologies

What is Polycarbonate?

Polycarbonate is a resin-based translucent thermoplastic, which can be manipulated for varied degrees of light transmission, aesthetic effects, and thermal control. Its hallow cell structure provides high-performance flexibility and energy efficiency. Available in cellular and also monolithic sheet, this lightweight yet durable material is ideal for translucent daylighting in vertical glazing, canopy and skylight applications.

Virgin Polycarbonate Pc Resin Pc Granules Pc Pellets

Cellular Polycarbonate?

  • Polycarbonate WILL NOT fracture – FRP will
  • There are many panel types on the market so we
    can control and manipulate performance levels
  • You do not have to settle on one-size-fits-all solutions
  • Sheet Thickness: 4mm to 60mm
  • Sheet Length: Up to 52 Feet
  • Impact Strength: 240 times the impact strength of glass

Sheet Types – Cellular & Monolithic

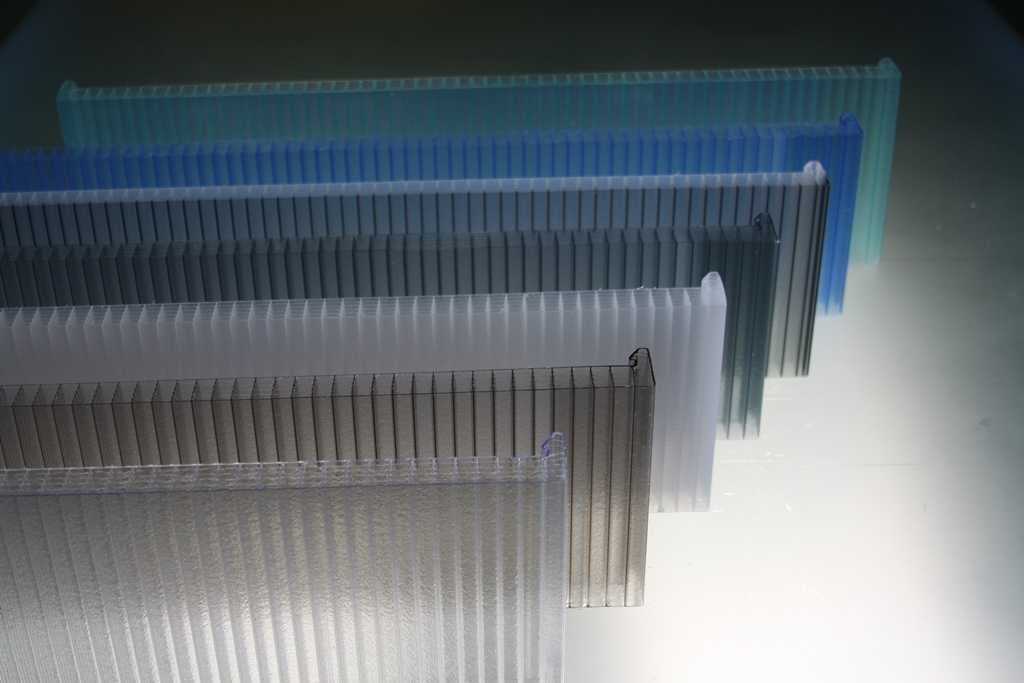

Cellular Sheets

  • Hollow cell structure provides energy efficiency
  • Super lightweight

UV Protection

  • UV Stabilization is coextruded into the panel

Fire Testing

  • ASTM - E84 - Class A for Cellular Panels
  • ASTM - D635 - CC1 rated - Self-Extinguishing

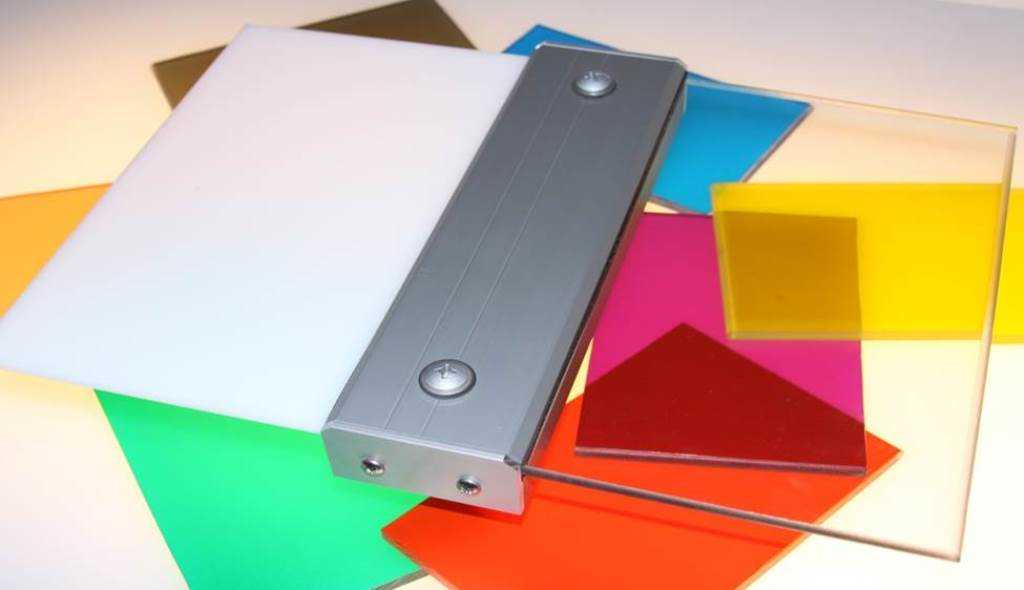

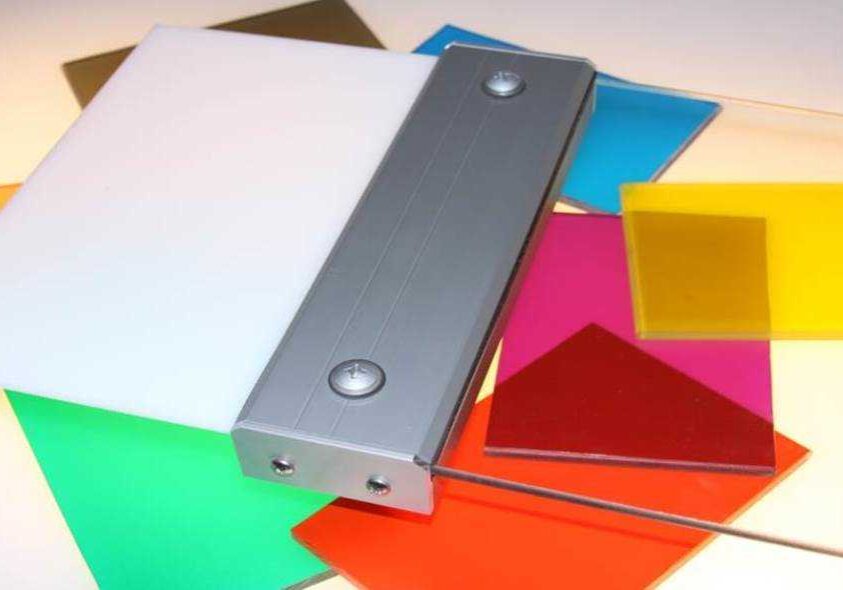

Monolithic Sheets

  • Many different colors and finishes
  • Lighter than glass

UV Protection

  • 5 to 15 year warranty on color change and light

Fire Testing

  • ASTM - D635 - CC1 for monolithic panels self-extinguishing

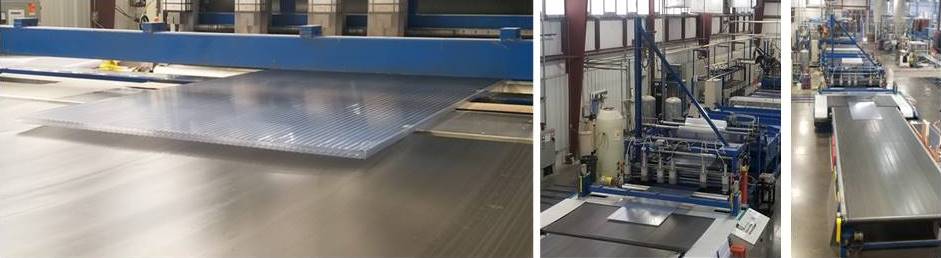

Production Process

  • Continuous sheets limited in length only by shipping methods and production space
  • 16mm triple-wall sheet extrudes at a rate of 2,000 square feet per hour
  • Extrudes 600 LBS per hour
Extruding Image

View our performance matrices

Contact Us

Translucent glazing technology is only as good as the structural framing system surrounding it. Duo-Gard designs and engineers solutions for your toughest framing challenges, always aware of the cost, production efficiency, and installation ease.

We offer system and design recommendations through installation. To learn more contact our team today at 734-207-9700 or info@duo-gard.com
