Engineered by Duo-Gard... Designed by You

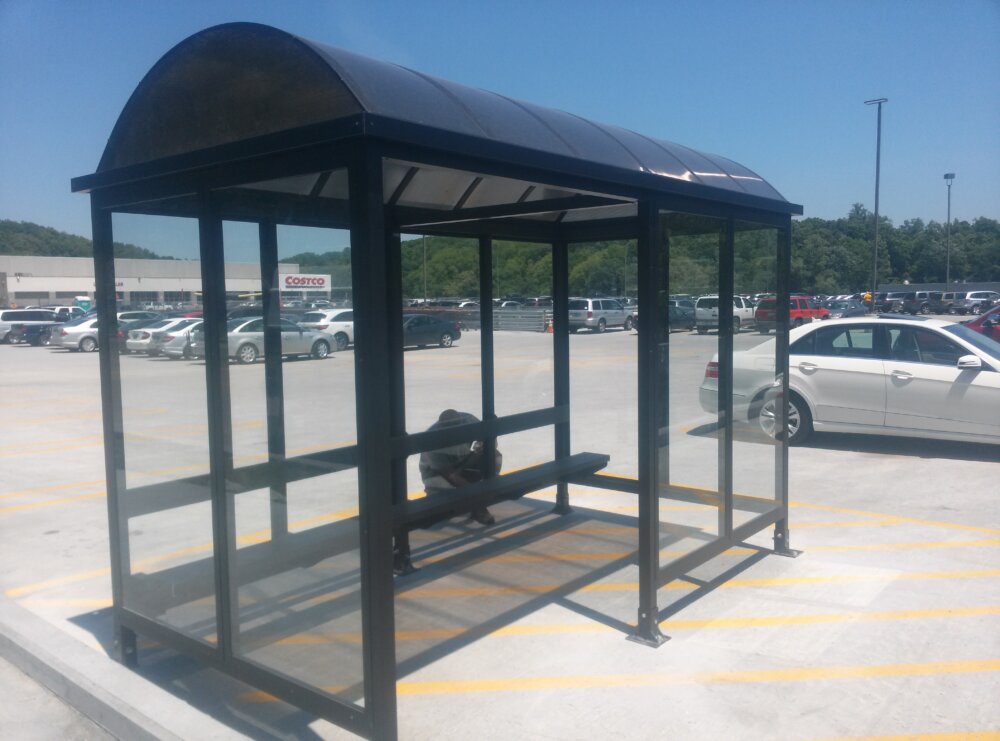

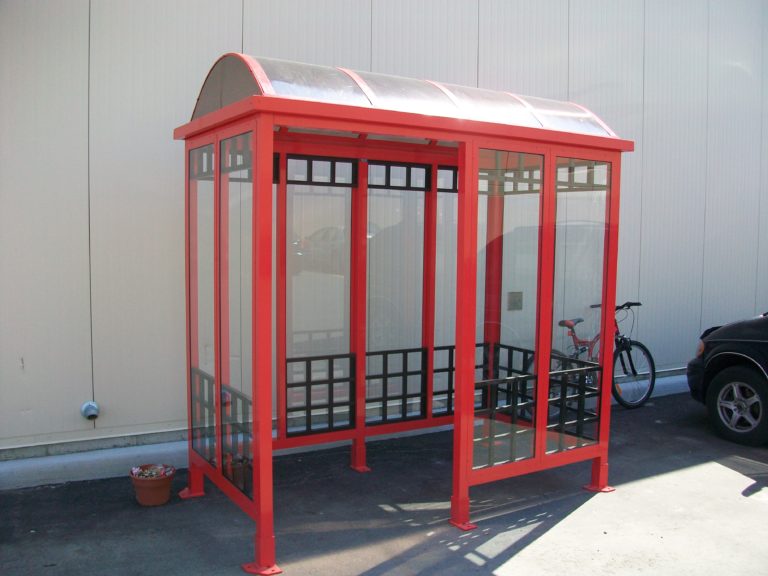

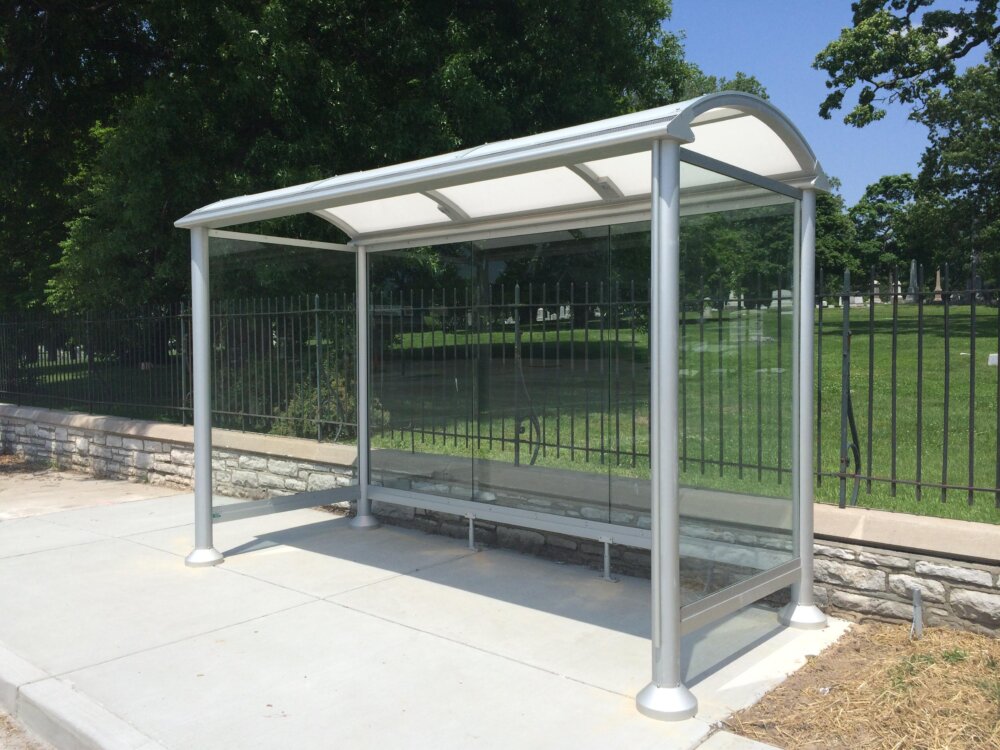

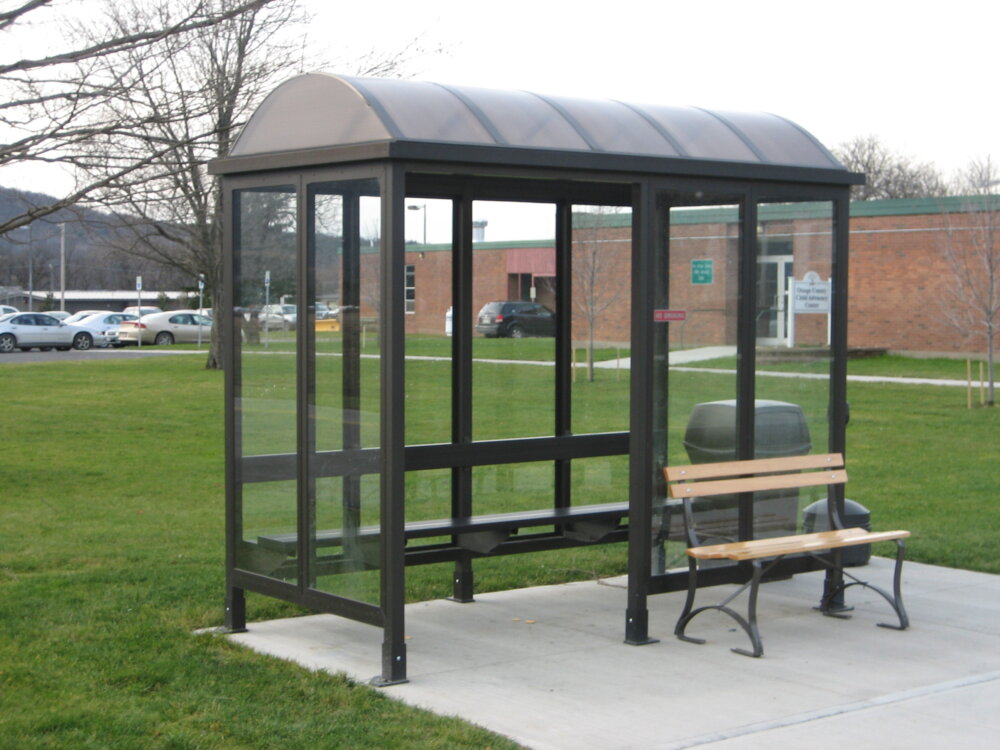

Barrel Vault Roof Style

The barrel vault roof style is one of our customers’ most popular selections due to its versatility, aesthetics, strength, durability and reasonable pricing. We design, engineer and manufacture our barrel vault roofs with a wide variety of materials. Customers can select from structural twin wall polycarbonate, solid acrylic solid, polycarbonate or standing seam metal.



Solid Acrylic Versus Polycarbonate

  • 1/4″ Standard thickness-solid acrylic or polycarbonate
  • Acrylic material is a cost-efficient option but can be broken
  • Polycarbonate is virtually unbreakable
  • Available in clear or bronze tint
  • Thicker options & laminates are available to meet a variety of structural requirements



Structured Twin Wall Polycarbonate

  • 1/4″ bronze tint structure polycarbonate
  • Strong, durable & economically priced
  • Available in thickness up to 40mm to meet any structural requirements
  • Available in clear or bronze tint
  • Aesthetically appealing
  • Provides light diffusion & transmission while drastically reducing heat transfer
  • Installations in all 50 states



Standing Seam Metal

  • Select from over 20 standard colors
  • Panels can be ordered in mill & powder coat or Kynar painted to match specific color requirements
  • Available in aluminum, steel or steel with a Galvalume coating
  • 20-25 year finish warranty from panel manufacturers





Ready Ship Shelters

Ready Ship Shelters are crated and ready to ship in 24 hours! The shelters come in several roof styles and sizes to suit your immediate needs.

Shelter framing is dark bronze anodized aluminum, ¼” tempered glass wall glazing with dark bronze anodized aluminum slat bench and backrest. The Barrel Vault roof is designed with a bronze multiwall polycarbonate material.

We provide installation instructions and customer support from start to finish. Available in the following roof styles and sizes:

  • 5×10 Barrel Vault Roof
  • 6×12 Barrel Vault Roof
  • 5×10 Flat Pan Roof
  • 6×12 Flat Pan Roof

Click here to learn more.
