Pinnacle Model

Duo-Gard’s Pinnacle Bike Shelter features 3/8” tempered safety glass walls with flat-polished edges and brushed stainless steel standoff connections. The roof is 20mm standing seam polycarbonate available in opal, bronze or clear with aluminum trim. The shelter’s steel structure is professionally welded by our AISC certified fabricators and available in Tnemec finish. It features an electronic-entry compatible door and internal recessed puck style LED lighting.  The Pinnacle shelter is designed to accommodate dual height racks to best maximize bicycle parking density.

Complimentary Space Planning: Space is at a premium. As demand for bike parking grows, it’s vital to plan expertly and efficiently. We consider your requirements and apply our knowledge to develop parking layouts, determine capacities and suggest products that make sense. Our recommendations are based on APBP guidelines and best practices around the world.

Architects, general contractors, and engineers trust Duo-Gard because of their high quality products and exceptional service. We will work with you every step of the way, from design, creating the specifications, fabrication, and installation. Experience the difference of Together by Design with Achieve 360

Achieve 360° is a proprietary, full-circle design and fabrication resource from Duo-Gard. We take a holistic approach to ensure that each client receives the highest level of service to create their vision. This approach showcases our unmatched ingenuity and flexibility. Think of Achieve 360° as a pathway to a real-time performance meter and project compass to meet your project goals.


  • 20’ standard interior width to accommodate two rows of dual height bike racks for maximum bicycle parking density
  • Made with heavy gauge steel
  • AISC compliant
  • PE stamped drawing availability in the United States and Canadian provinces
  • Enclosed, lockable shelter with electronic entry capabilities
  • Electrical pre-wiring and recessed low-voltage puck lighting options


  • Tnemec finish
  • Vertical I-beam frame construction
  • Option for electrical prep to be added to the design
  • Mechanical connections to be used during installation


  • 9/16” laminated tempered safety glass walls with polished edges and stainless-steel standoff wall attachments


  • 20mm translucent polycarbonate structured sheet in clear, opal, or bronze
  • Integral gutter and downspouts with perforated metal leaf guard
  • Tapered I-beam roof rafter construction
  • Cantilevered roof section for exterior pedestrian canopy

Bike Parking Capacity Chart

Pinnacle Capacity Chart

Custom lengths are available; contact our team to discuss.

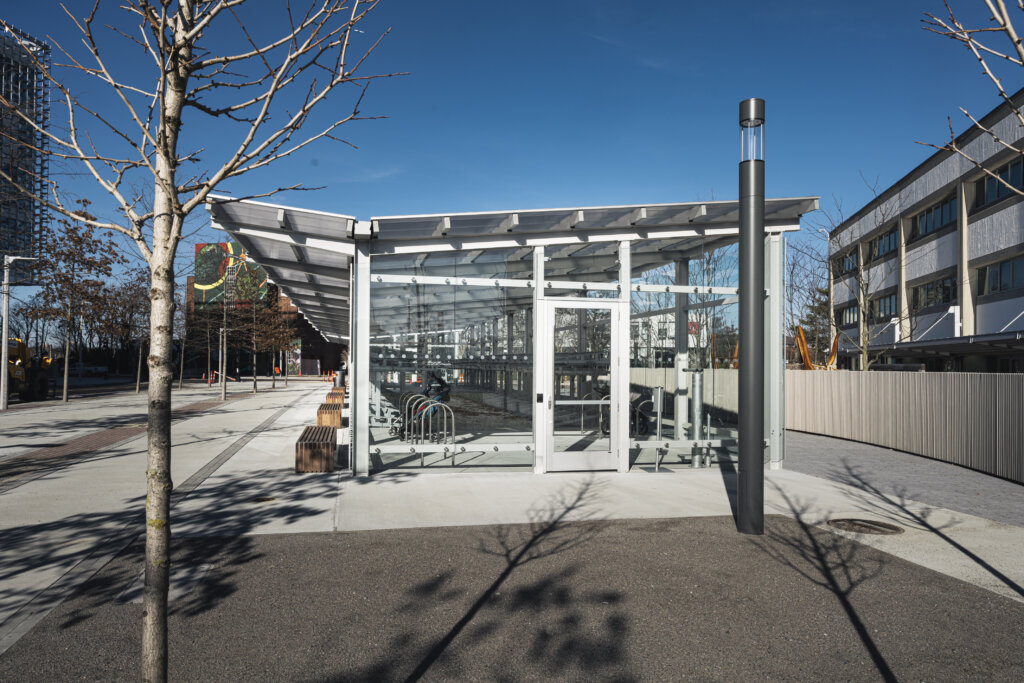

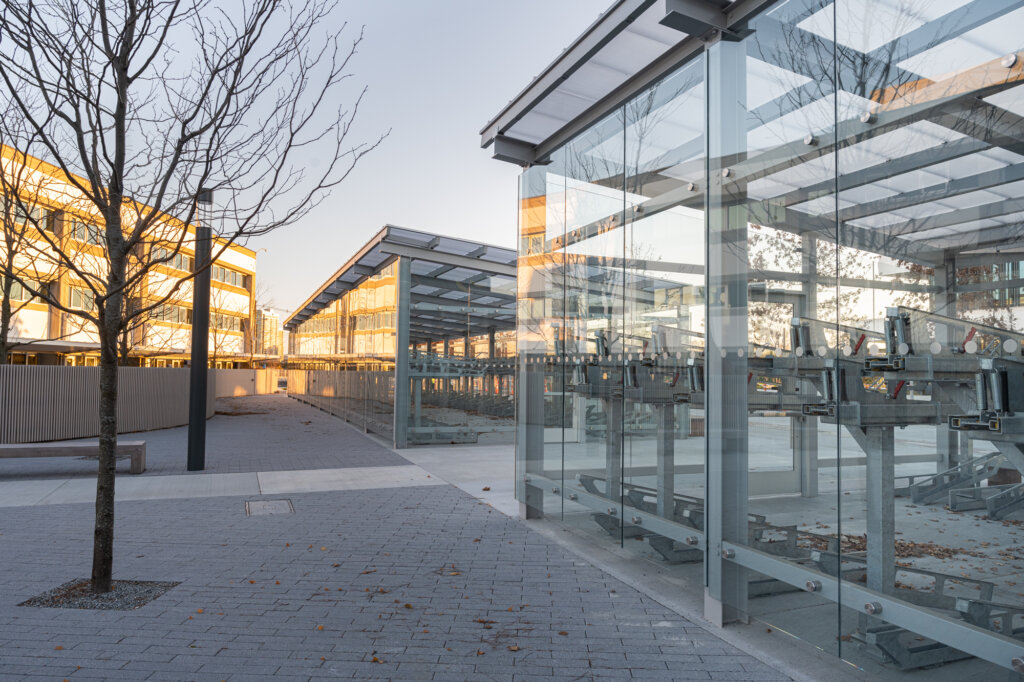

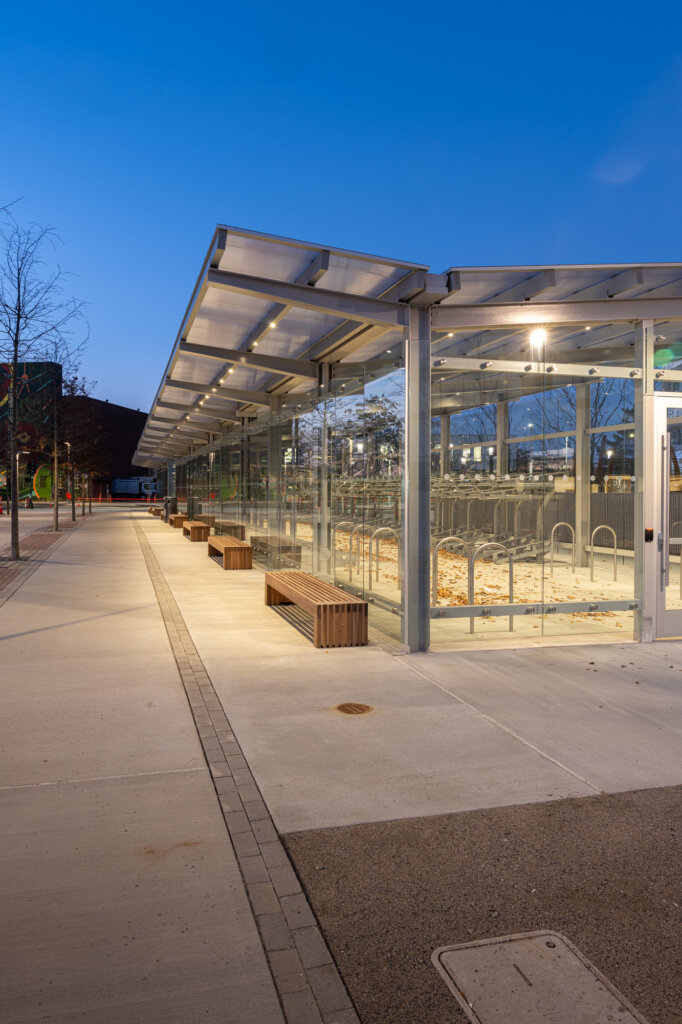

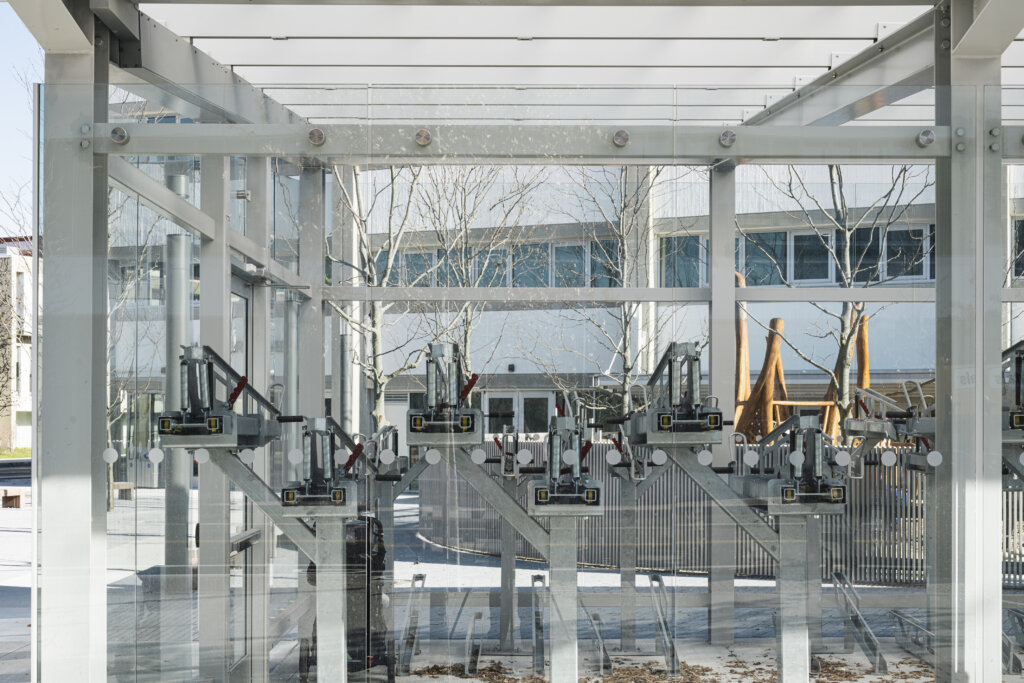

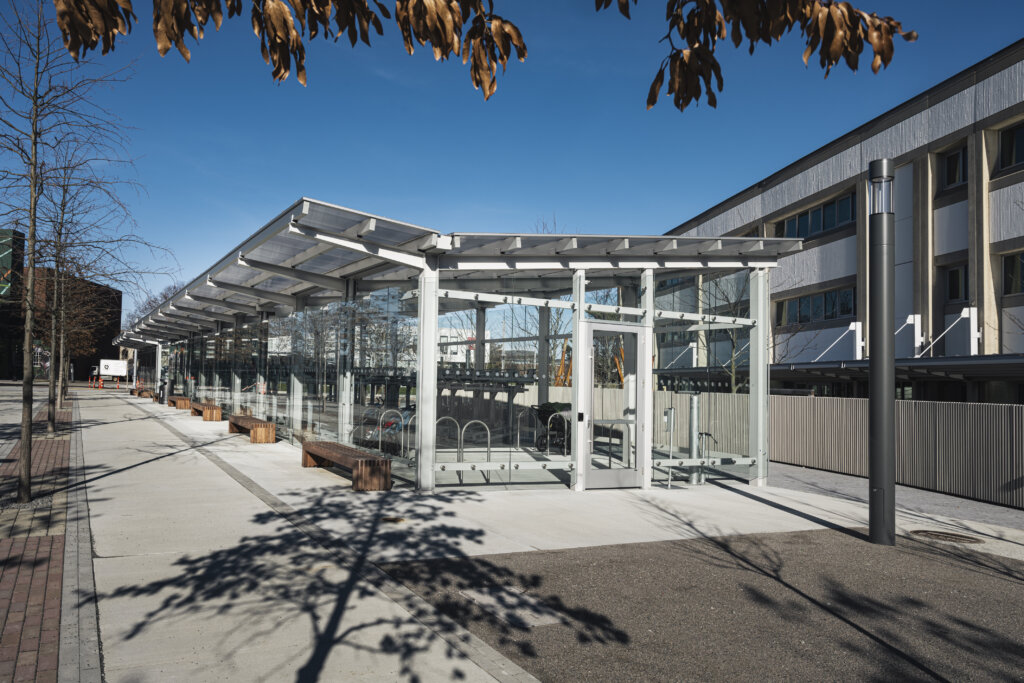

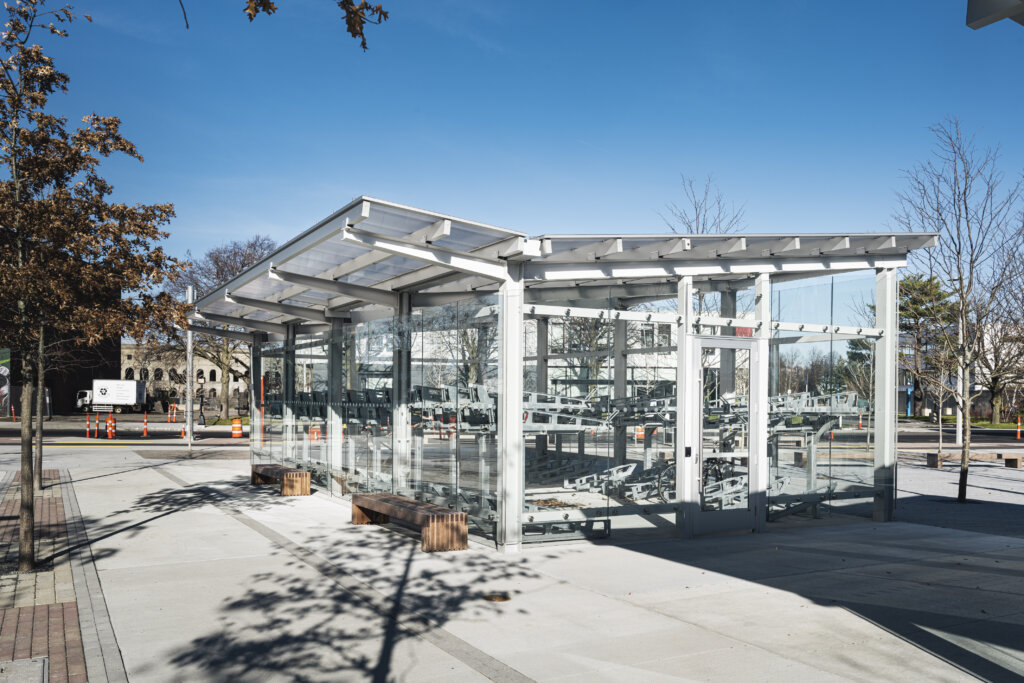

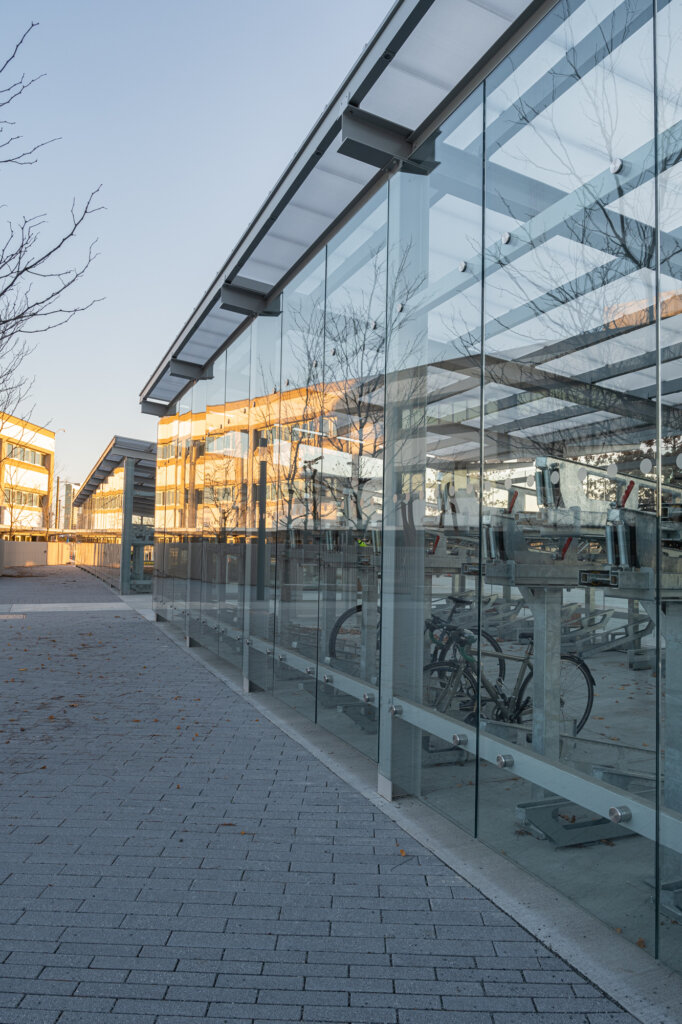

Photo Gallery
