Engineered by Duo-Gard... Designed by You

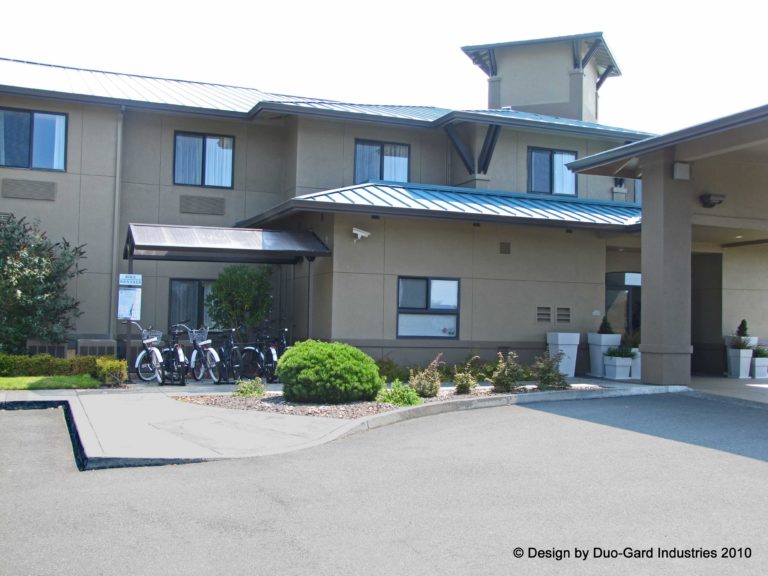

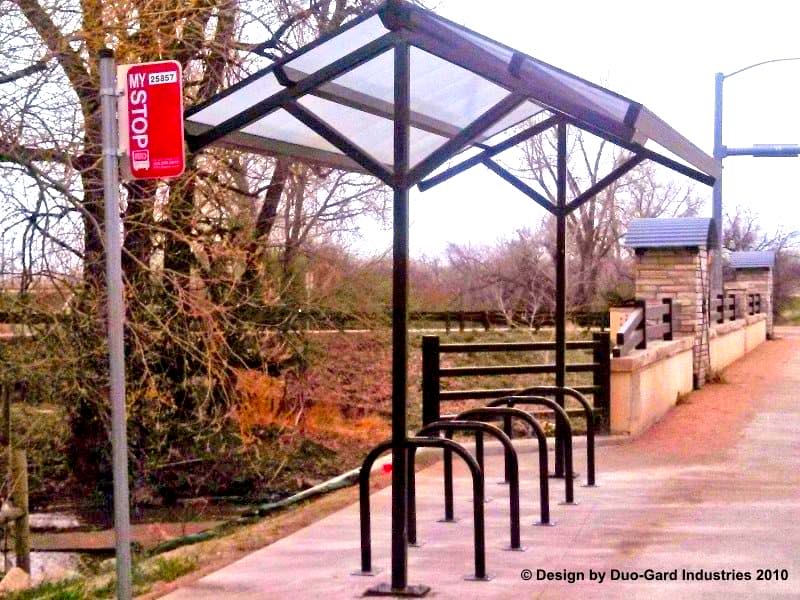

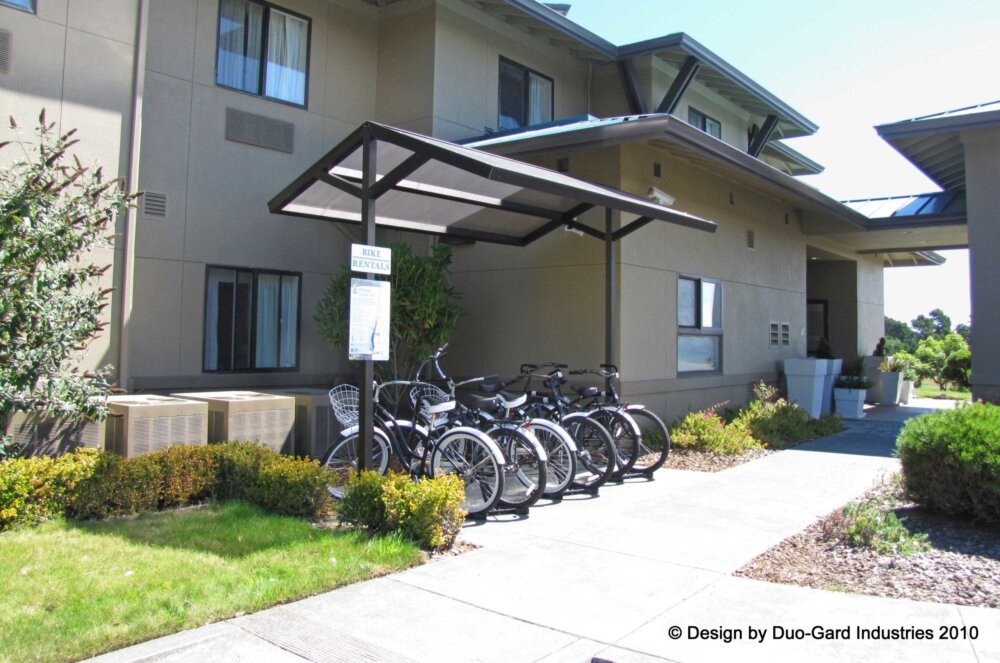

Apex Model - Sleek and stylish, practical and economical

Standard Model Benefits

  • Designed to address specific bike parking needs
  • Pre-engineered bike shelters
  • Constructed with readily available, standard materials
  • Cost-effective bicycle storage
  • Modular design, easily customizable

Roof

  • Multiwall translucent polycarbonate
  • Opal and clear only
  • Optional metal standing seam, gable style, and standard color offerings
  • Kynar finish – 25-year warranty

Frame

  • Aluminum or steel tube framing (aluminum framing not available in all geographical locations due to loading)
  • Aluminum – anodized, powder coat
  • Steel – 3-Coat Tnemec system including 2-part epoxy paint finish with zinc primer undercoat, or galvanized finish
  • Anchor – surface mounted
  • PE stamps available in all of North America

Optional Features

  • Standard lighting packages available
  • Photovoltaic solar lighting packages
  • Bike Racks
  • Benches
  • Repair Stations



Available Upon Request

  • Complimentary bike parking plans
  • Project Pricing
  • Specifications
  • CAD Drawings
  • Bike Parking Layouts
  • Technical product

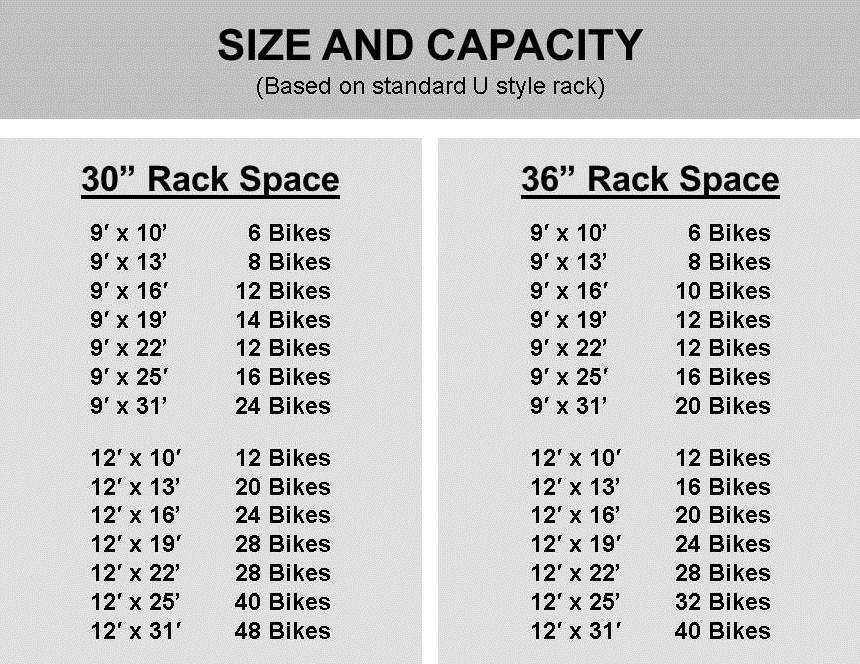

Sizes & Parking Capacities

30″ Rack Spacing

9′ x 10’  6 Bikes

9′ x 13’  8 Bikes

9′ x 16′  12 Bikes

9′ x 19’  14 Bikes

9′ x 22’  12 Bikes

9′ x 25′  16 Bikes

9′ x 31’  24 Bikes

12′ x 10′  12 Bikes

12′ x 13’  20 Bikes

12′ x 16’  24 Bikes

12′ x 19′  28 Bikes

12′ x 22’  28 Bikes

12′ x 25’  40 Bikes

12′ x 31′  48 Bikes



36″ Rack Spacing

9′ x 10’  6 Bikes

9′ x 13’  8 Bikes

9′ x 16′  10 Bikes

9′ x 19’  12 Bikes

9′ x 22’  12 Bikes

9′ x 25′  16 Bikes

9′ x 31’  20 Bikes

12′ x 10′  12 Bikes

12′ x 13’  16 Bikes

12′ x 16’  20 Bikes

12′ x 19′  24 Bikes

12′ x 22’  28 Bikes

12′ x 25’  32 Bikes

12′ x 31′  40 Bikes
