Engineered by Duo-Gard... Designed by You

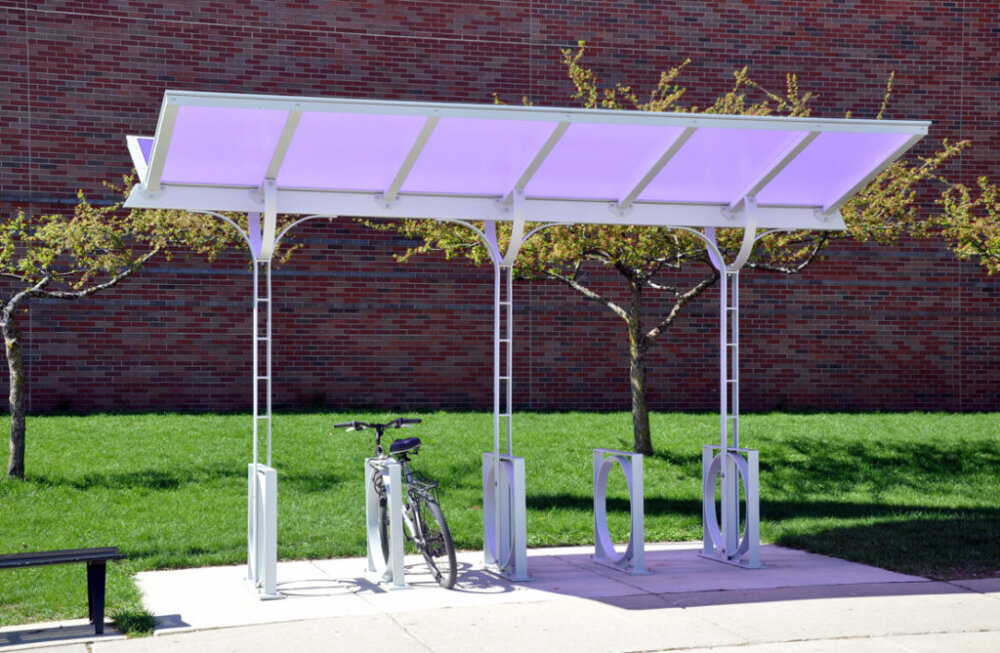

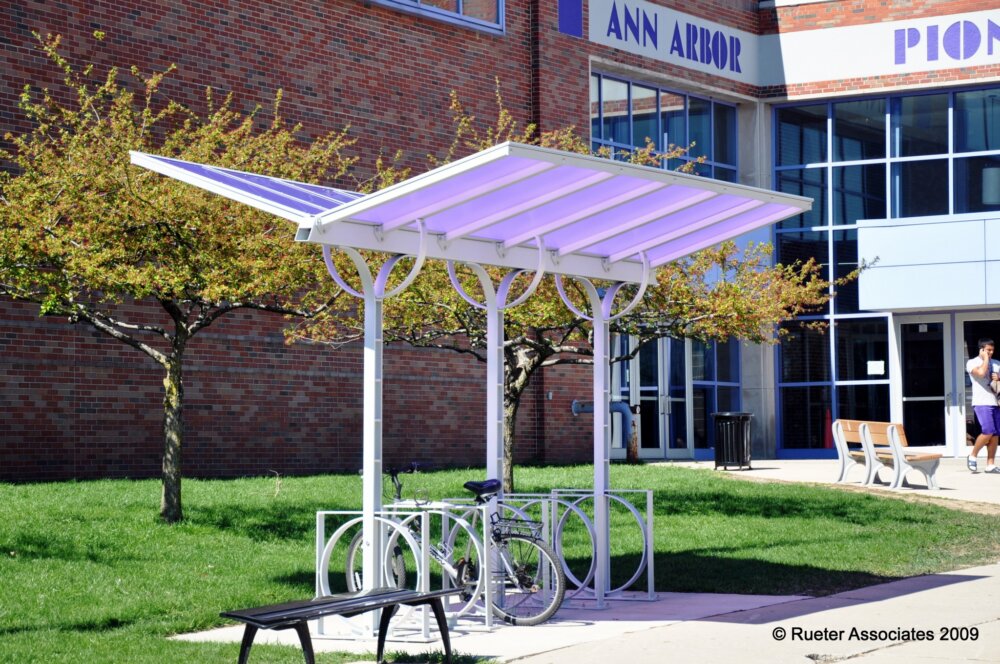

Butterfly Model - artistic focal point for any streetscape

Roof

  • Multiwall translucent polycarbonate
  • Opal, clear or bronze

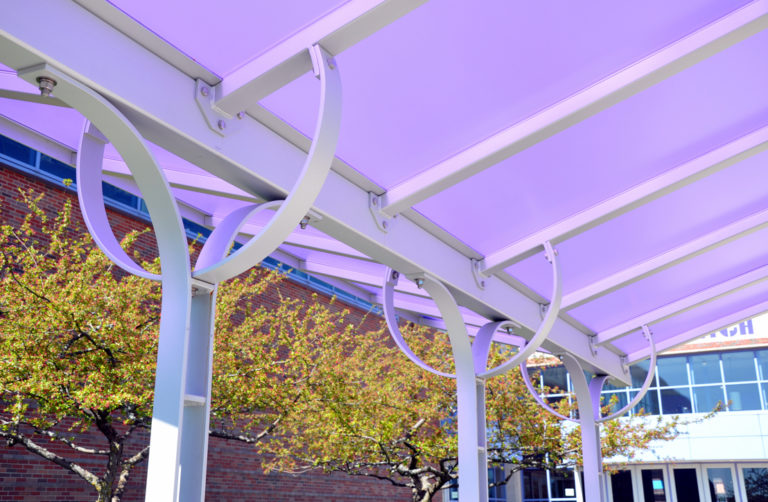

Frame

  • Bike parking built into the design
  • 1/2″ x 3″ steel construction
  • Steel – 3-Coat Tnemec system including 2-part epoxy paint finish with zinc primer undercoat, or galvanized finish
  • Anchor – surface mounted
  • PE Stamps available in all of North America
  • Custom colors available for no additional charge

Optional Features

  • Standard lighting packages
  • Photovoltaic solar lighting packages
  • Bike Racks
  • Benches
  • Bike Repair Stations

Standard Model Benefits

  • Designed to address specific parking needs
  • Pre-engineered bike shelters
  • Constructed with readily available, standard materials
  • Cost-effective bicycle storage
  • Modular design, easily customizable



Available Upon Request

  • Project Pricing
  • Specifications
  • CAD Drawings
  • Bike Parking Layouts
  • Complimentary Bike Parking Plans
  • Technical Product Data

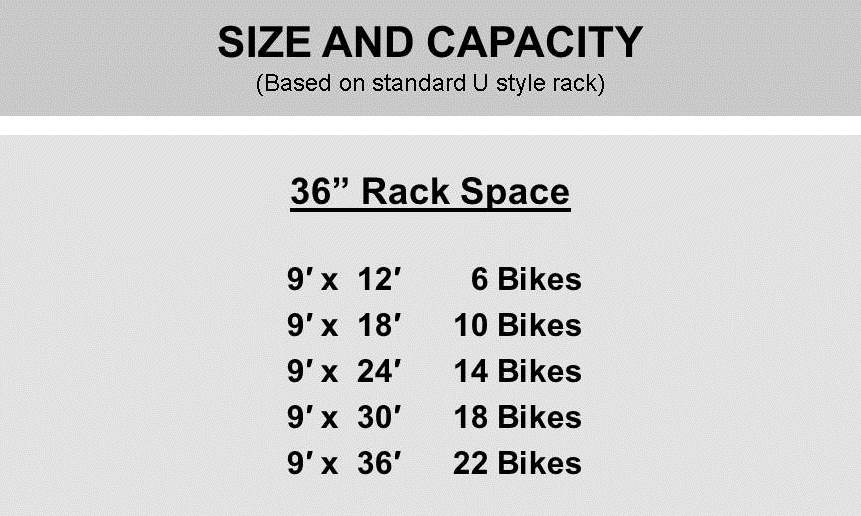

Sizes & Parking Capabilities

36″ Rack Spacing

9′ x 12 ‘   6 Bikes

9′ x 18’  10 Bikes

9′ x 24′  14 Bikes

9′ x 30’  18 Bikes

9′ x 36′ 22 Bikes
