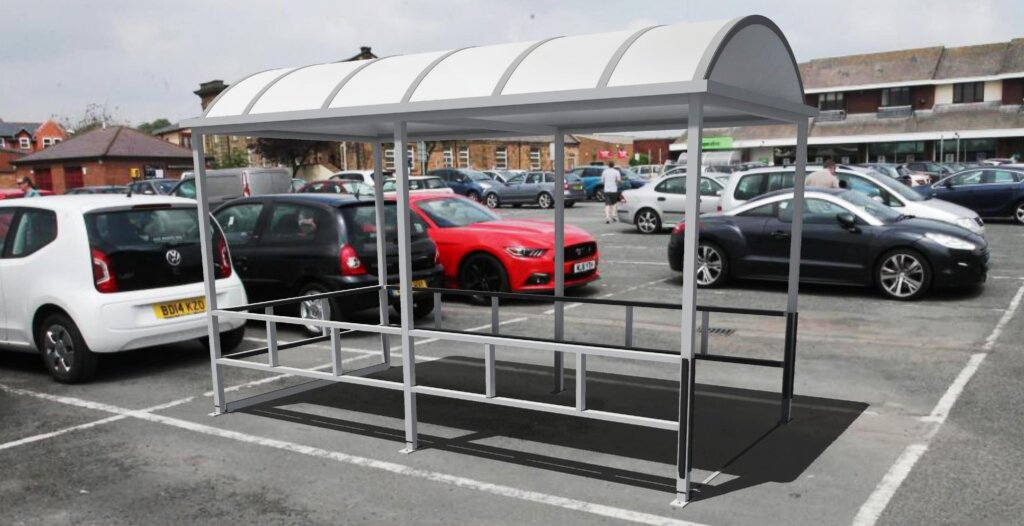

Fairlane Model



Unique Features

  • Barrel vault roof with integral gutter and 2 ½” fascia
  • Anodized aluminum framing, will not rust, chip, or flake
  • 30 year projected life span
  • Cart rollout bar keeps shopping carts contained, reducing damage to carts & customer vehicles
  • Rear cart stop bar protects the structural integrity of the corral


Standard Sizing*

Configuration                                       Dimensions                          Corral Capacity

Single                                                    3′5″W x 14’L                         (1) Row of 25″ Carts

Double                                                  5’3″W x 14’L                         (2) Rows of 25″ Carts

Triple                                                     7’6″W x 14’L                         (3) Rows of 25″ Carts

*Custom sizes also available.  Ask your Duo-Gard representative.


Standard Features and Options



  • 2-1/2” x 2-1/2” square aluminum columns
  • 3” x 3”, 4” x 4”, 4” x 6” square aluminum or round tube, optional
  • Internal framing connections for ease of installation



  • Dark-bronze or clear anodized finish
  • Black or champagne anodized, paint (powder coat, Kynar, woodgrain, custom), optional


Roof Glazing

  • Translucent multi-wall polycarbonate – bronze, clear, opal
  • Standing seam metal, 30+ color choices, optional
  • Translucent multi-wall polycarbonate – blue or green optional, if available
  • Solid acrylic, optional
  • Monolithic polycarbonate, optional


Corral Protection

  • Integrated HDPE bumpers on lower interior horizontal framing & exterior front posts



  • Asphalt anchors, concrete anchors, and concrete ballasts available



  • Pre-fabricated roof and wall sections



Adjustable legs allow corral leveling at each column and create a uniform parking lot appearance


If you are interested in receiving a price quote, please call us at 734-207-9700 or click the quote link above and complete the request form.  One of our sales specialists will be happy to assist you.





Single-Wide Drawing

Double-Wide Drawing

Triple-Wide Drawing


Finishes & Color Options

Tnemec Paint Colors

Anodized Finish Color Chart

Powder Coat Paint Color Chart

Metal Roof Color Chart


Additional Options


Solar Lighting Packages

All Weather Wall Panels


Trash Receptacles


Stamped Drawings and Calculations
