Cart Corral | Hudson

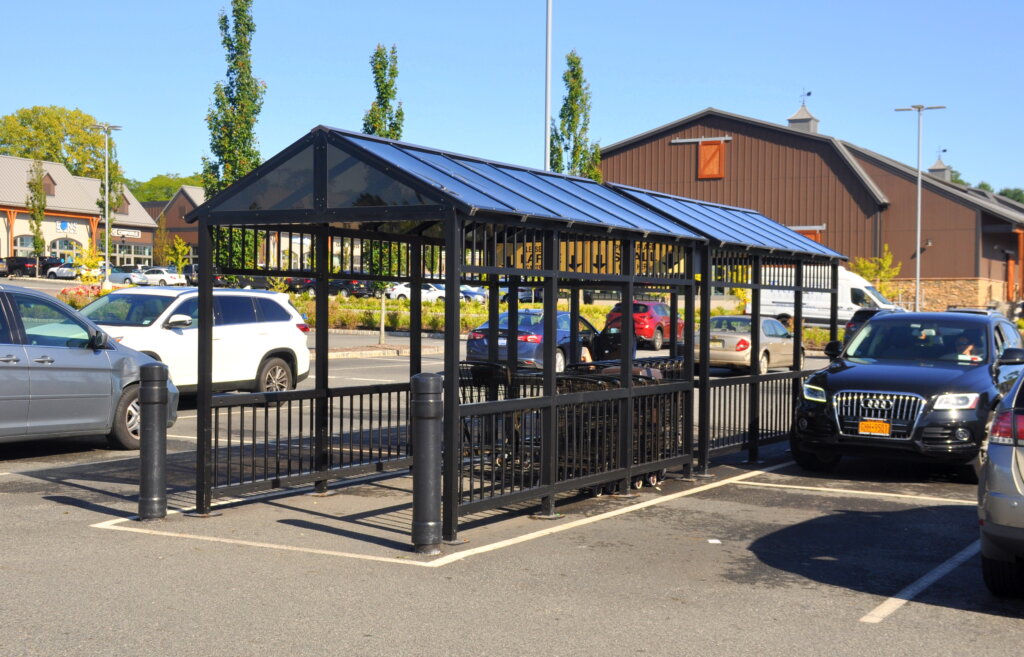

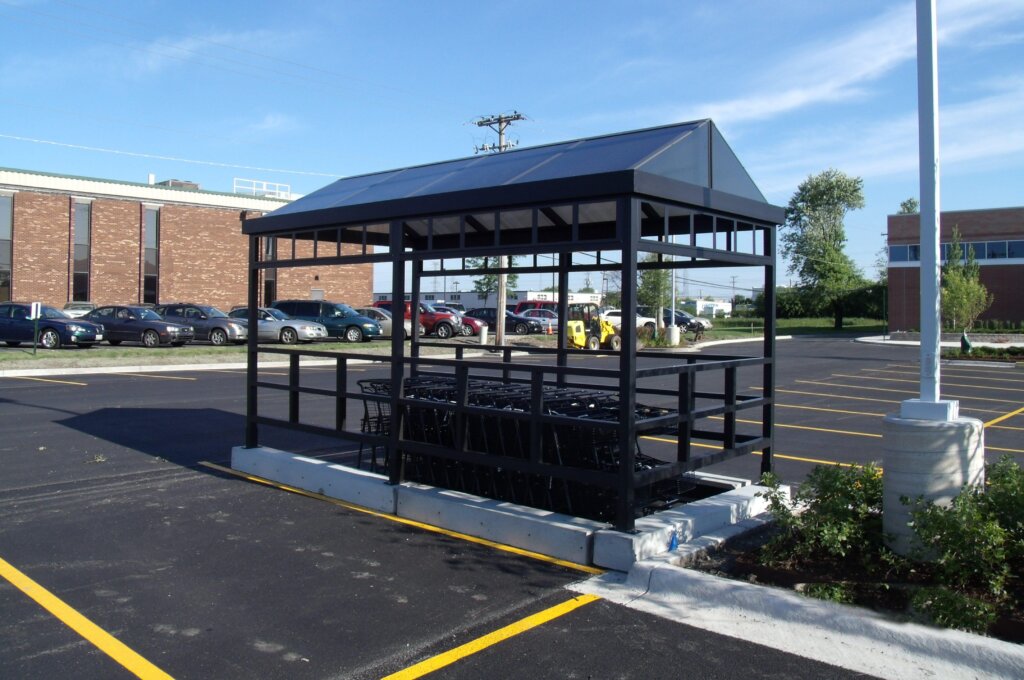

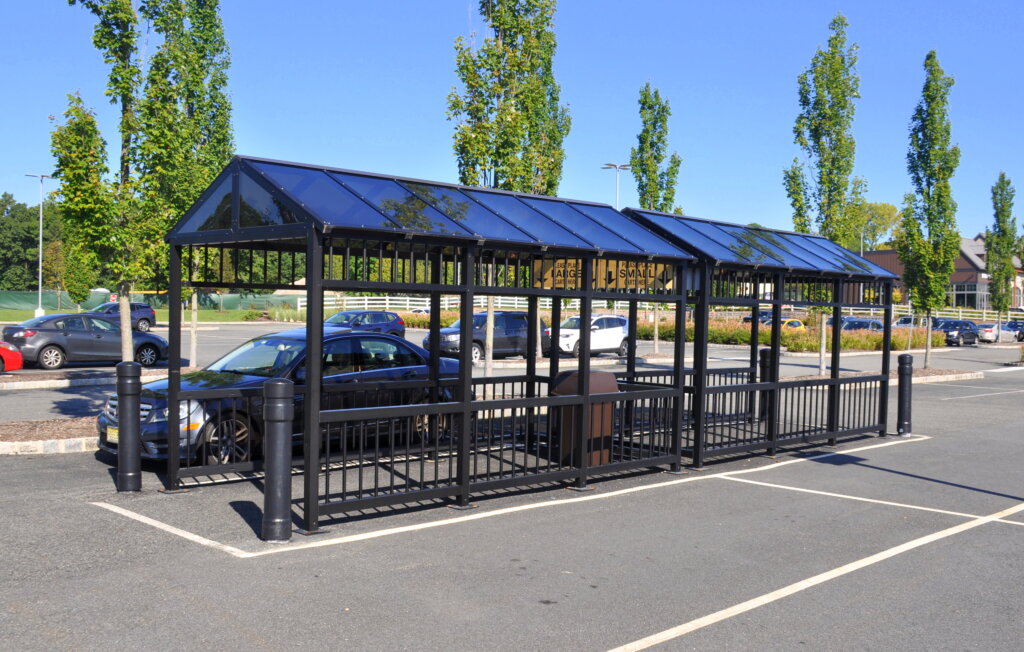

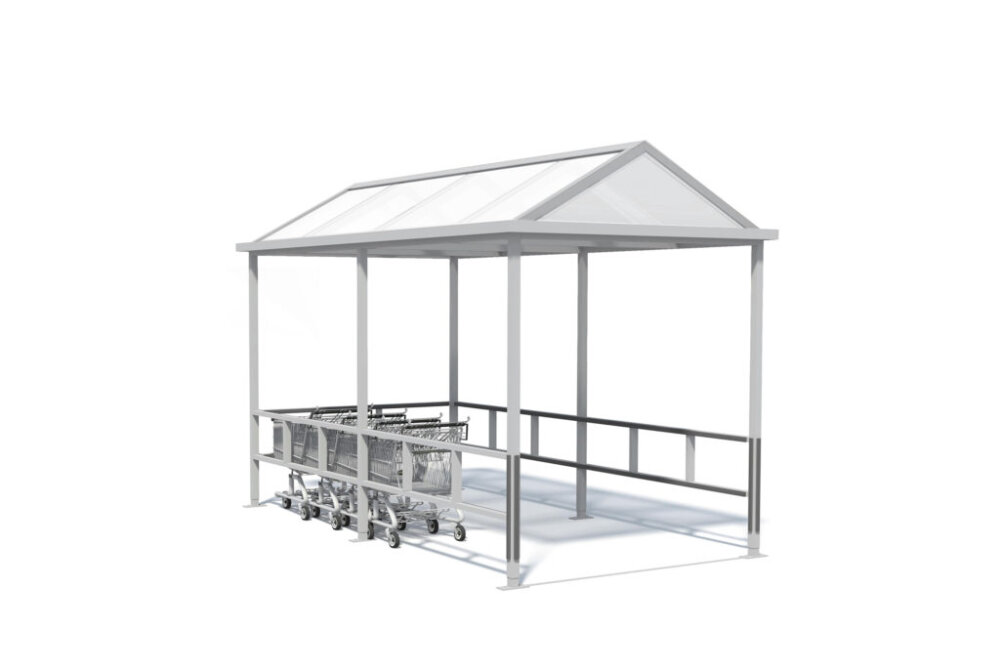

Hudson Model



Unique Features

  • Gable roof with integral gutter and 2 ½” fascia
  • Anodized aluminum framing, will not rust, chip, or flake
  • 30 year projected life span
  • Cart rollout bar keeps shopping carts contained, reducing damage to carts & customer vehicles
  • Rear cart stop bar protects the structural integrity of the corral



Standard Sizing*

Configuration                                    Dimensions                         Corral Capacity

Single                                                 3′5″W x 14’L                       (1) Row of 25″ Carts

Double                                               5’3″W x 14’L                       (2) Rows of 25″ Carts

Triple                                                  7’6″W x 14’L                       (3) Rows of 25″ Carts

*Custom sizes also available.  Ask your Duo-Gard representative.



Standard Features & Options

Framing

  • 2-1/2” x 2-1/2” square aluminum columns
  • 3” x 3”, 4” x 4”, 4” x 6” square aluminum or round tube, optional
  • Internal framing connections for ease of installation



Finish

  • Dark-bronze or clear anodized finish
  • Black or champagne anodized, paint (powder coat, Kynar, woodgrain, custom), optional



Roof Glazing

  • Translucent multi-wall polycarbonate – bronze, clear, opal
  • Standing seam metal, 30+ color choices, optional
  • Translucent multi-wall polycarbonate – blue or green optional, if available



Corral Protection

  • Integrated HDPE bumpers on lower interior horizontal framing & exterior front posts



Anchoring

  • Asphalt anchors, concrete anchors, and concrete ballasts available



Assembly

  • Pre-fabricated roof and wall sections



Leveling

  • Adjustable legs allow corral leveling at each column and create a uniform parking lot appearance



If you are interested in receiving a price quote, please call us at 734-207-9700 or click the quote link above and complete the request form.  One of our sales specialists will be happy to assist you.
