Engineered by Duo-Gard... Designed by You

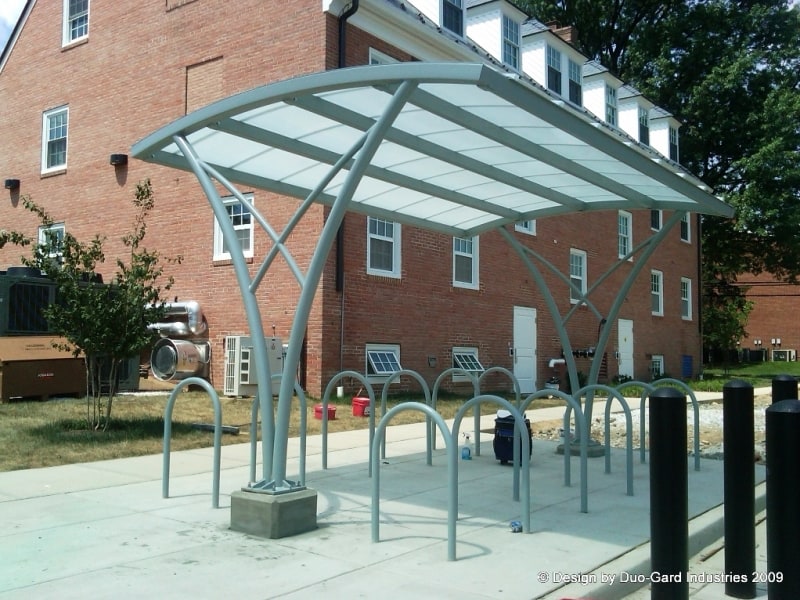

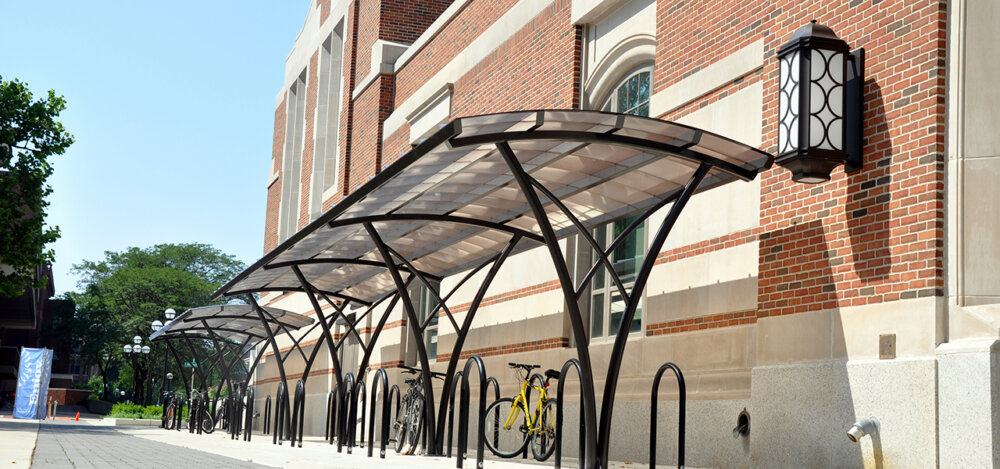

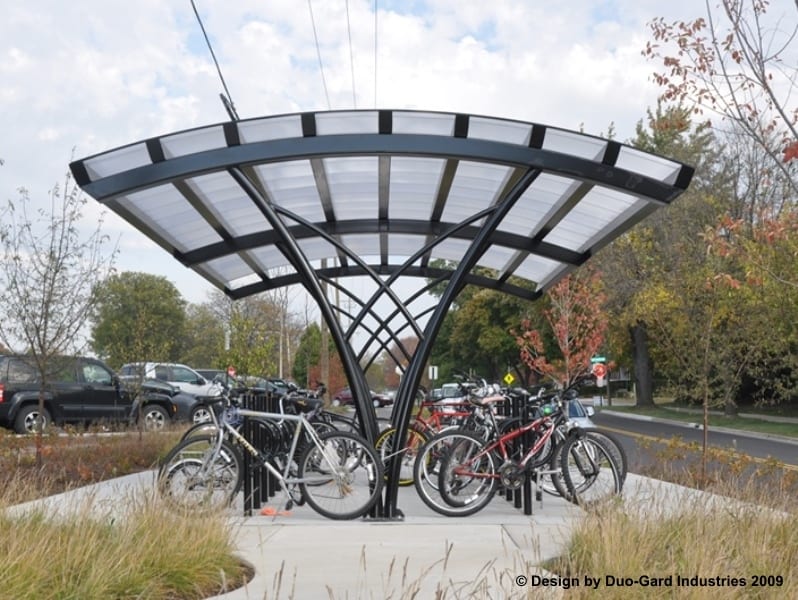

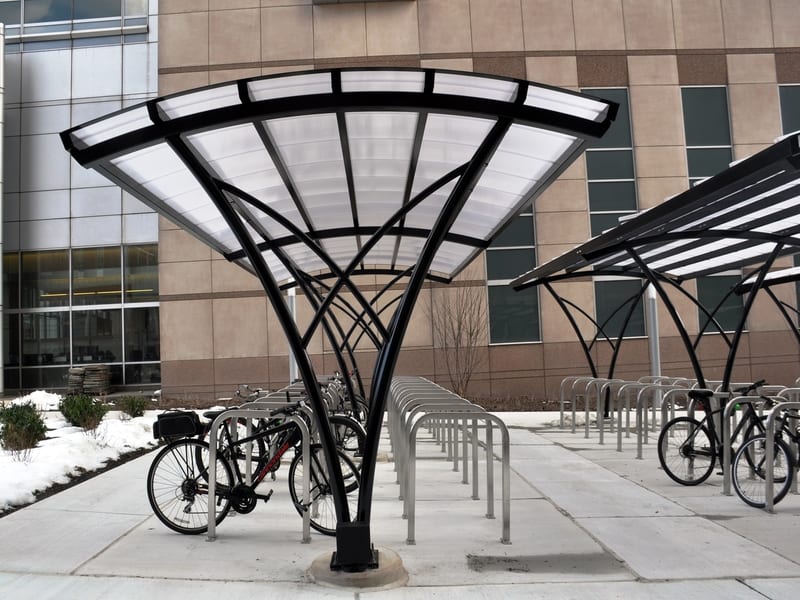

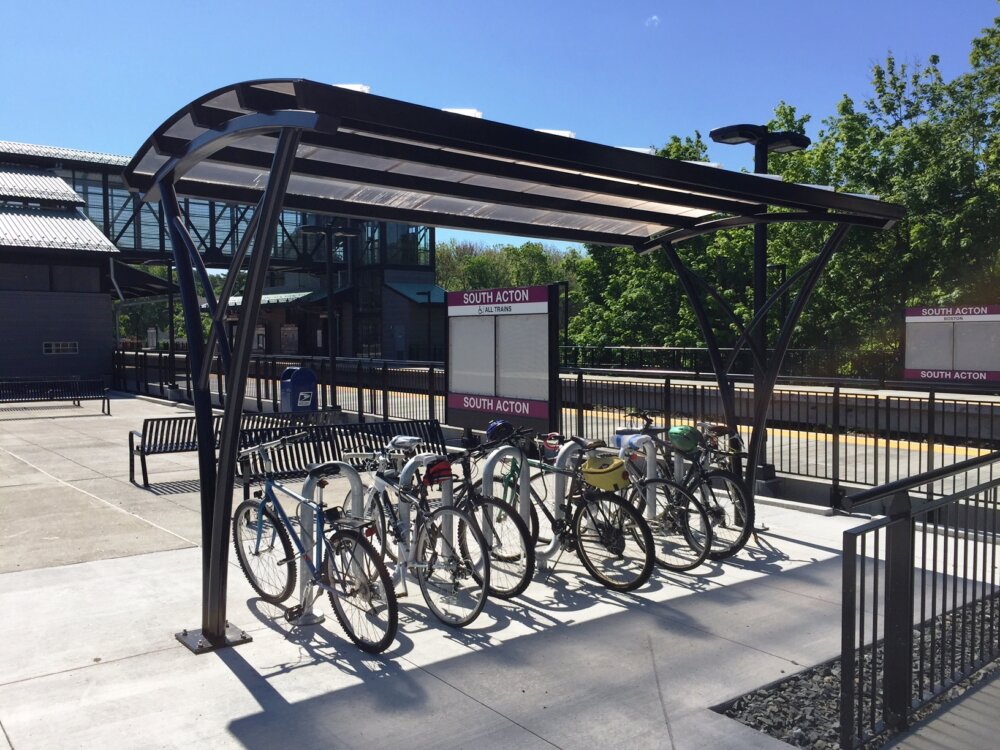

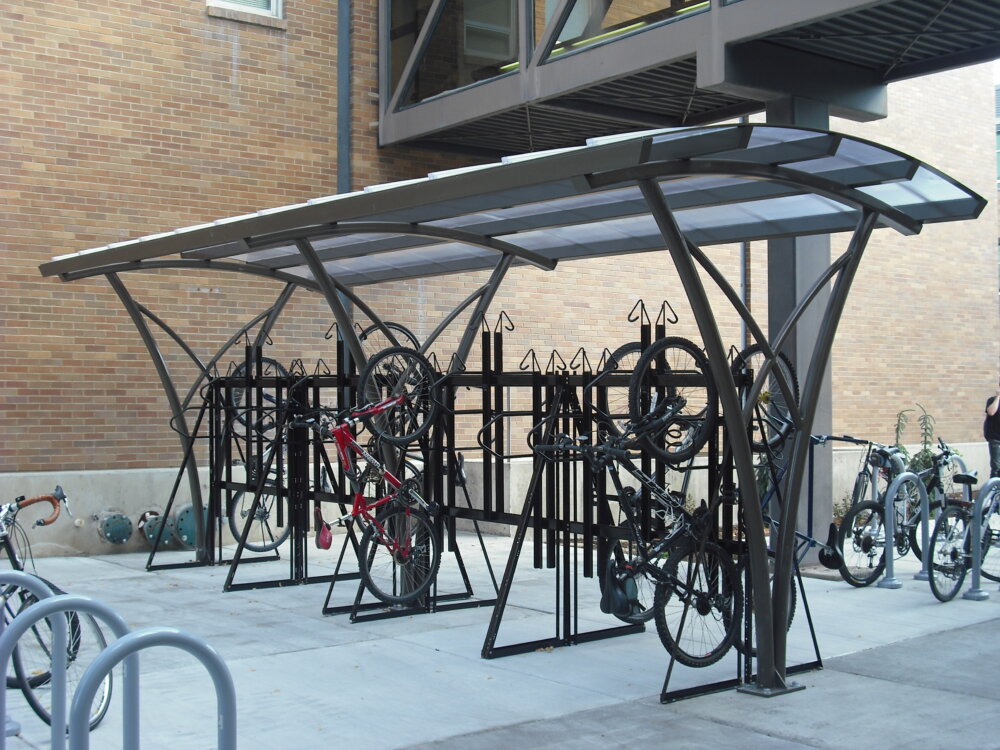

Parachute Model - It's graceful lines echo movement

  • A pre-engineered bike shelter. Available with a standard lighting package.
  • The Tnemic paint system has 3 coats including 2-part epoxy paint finish.
  • Readily available standard materials create this product

Roof

  • Multiwall translucent polycarbonate, batten style
  • Opal, clear, bronze – green or blue based on availability
  • Metal standing seam curved
  • Kynar finish – 25-year warranty

Frame

  • Heavy gauge steel
  • 3-Coat Tnemec paint system including 2-part epoxy paint finish with zinc primer undercoat, or galvanized
  • Custom color match available for no additional charge
  • PE stamped drawings available in all of North America
  • Anchor – surface mounted

Optional Features

  • Standard lighting packages available
  • Photovoltaic solar lighting packages
  • Bike Infrastructure:

    • Bike Racks available
    • Benches available
    • Repair Stations available

Standard Model Benefits

  • Modular design – easily customizable
  • Designed to address specific bike parking needs
  • Pre-engineered bike shelters
  • Constructed with readily available, standard materials
  • Cost-effective bicycle storage



Available Upon Request

  • Complimentary bike parking plans
  • Project Pricing
  • Specifications
  • CAD Drawings
  • Bike Parking Layouts
  • Technical product

Sizes & Parking Capacities

30″ Rack Spacing

9′ x 10’      6 Bikes

9′ x 13’      8 Bikes

9′ x 16′    10 Bikes

9′ x 19’    14 Bikes

9′ x 22’    16 Bikes

9′ x 25′    16 Bikes

9′ x 31’    20 Bikes

12′ x 10′   12 Bikes

12′ x 13’   16 Bikes

12′ x 16’  20 Bikes

12′ x 19′  28 Bikes

12′ x 22’  32 Bikes

12′ x 25’  36 Bikes

12′ x 31′  44 Bikes

36″ Rack Spacing

9′ x 10’     6 Bikes

9′ x 13’     8 Bikes

9′ x 16′   10 Bikes

9′ x 19’    12 Bikes

9′ x 22’    14 Bikes

9′ x 25′    16 Bikes

9′ x 31’    20 Bikes

12′ x 10′   12 Bikes

12′ x 13’   16 Bikes

12′ x 16’  20 Bikes

12′ x 19′  24 Bikes

12′ x 22’  28 Bikes

12′ x 25’  32 Bikes

12′ x 31′  40 Bikes
