Cart Corral | Ambassador

Architectural Cart Corrals

Unique Features

  • Arched single slope roof, front-to-back
  • Anodized aluminum framing, will not rust, chip, or flake
  • 30 year projected life span
  • Cart rollout bar keeps shopping carts contained, reducing damage to carts & customer vehicles
  • Rear cart stop bar protects the structural integrity of the corral

Achieve 360° is a proprietary, full-circle design and fabrication resource from Duo-Gard. We take a holistic approach to ensure that each client receives the highest level of service to create their vision. This approach showcases our unmatched ingenuity and flexibility. Think of Achieve 360° as a pathway to a real-time performance meter and project compass to meet your project goals.

Standard Features & Options

Framing

  • 2-1/2” x 2-1/2” square aluminum columns
  • 3” x 3”, 4” x 4”, 4” x 6” square aluminum or round tube, optional
  • Internal framing connections for ease of installation

Finish

  • Dark-bronze or clear anodized finish
  • Black or champagne anodized, paint (powder coat, Kynar, woodgrain, custom), optional

Roof Glazing

  • Translucent multi-wall polycarbonate – bronze, clear, opal
  • Standing seam metal, 30+ color choices, optional
  • Translucent multi-wall polycarbonate – blue or green optional, if available

Corral Protection

  • Integrated HDPE bumpers on lower interior horizontal framing & exterior front posts

Anchoring

  • Asphalt anchors, concrete anchors, and concrete ballasts available

Assembly

  • Pre-fabricated roof and wall sections

Leveling

  • Adjustable legs allow corral leveling at each column and create a uniform parking lot appearance

Standard Sizing

Single 3'5"W x 14'L (1) Row of 25" Carts
Double 5’3″W x 14’L (2) Rows of 25″ Carts
Triple 7’6″W x 14’L (3) Rows of 25″ Carts
*Custom sizes also available. Ask your Duo-Gard representative.

If you are interested in receiving a price quote, please call us at 734-207-9700 or click the quote link above and complete the request form.  One of our sales specialists will be happy to assist you.

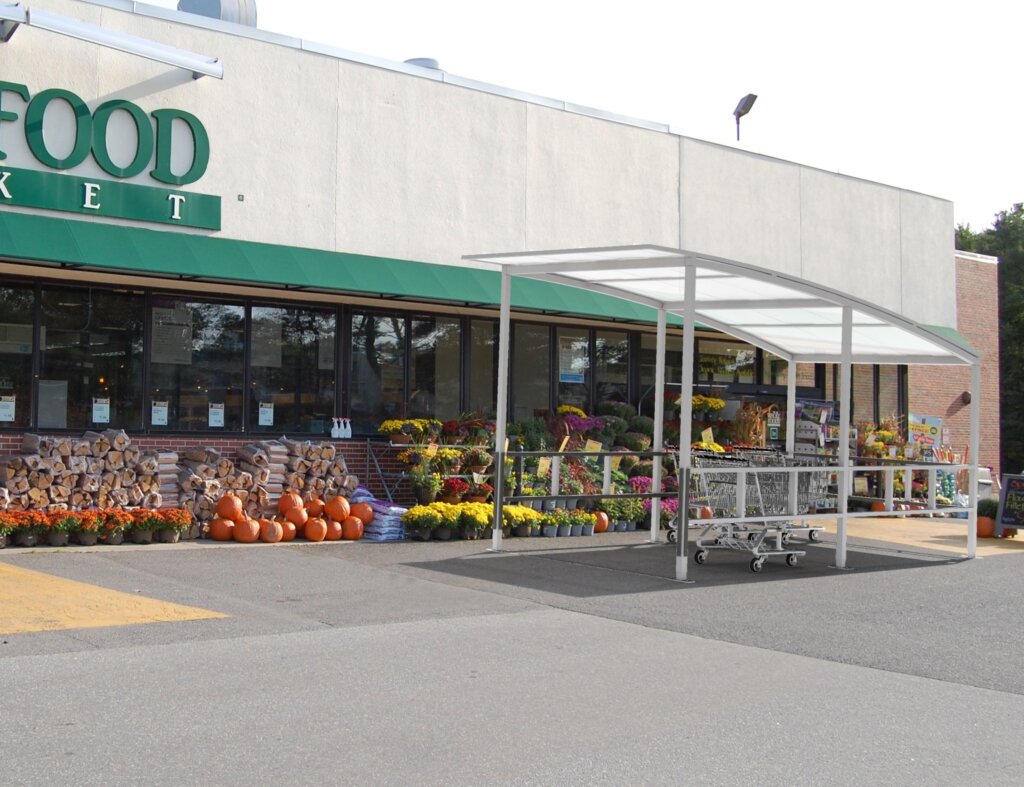

Photo Gallery
