Engineered by Duo-Gard... Designed by You

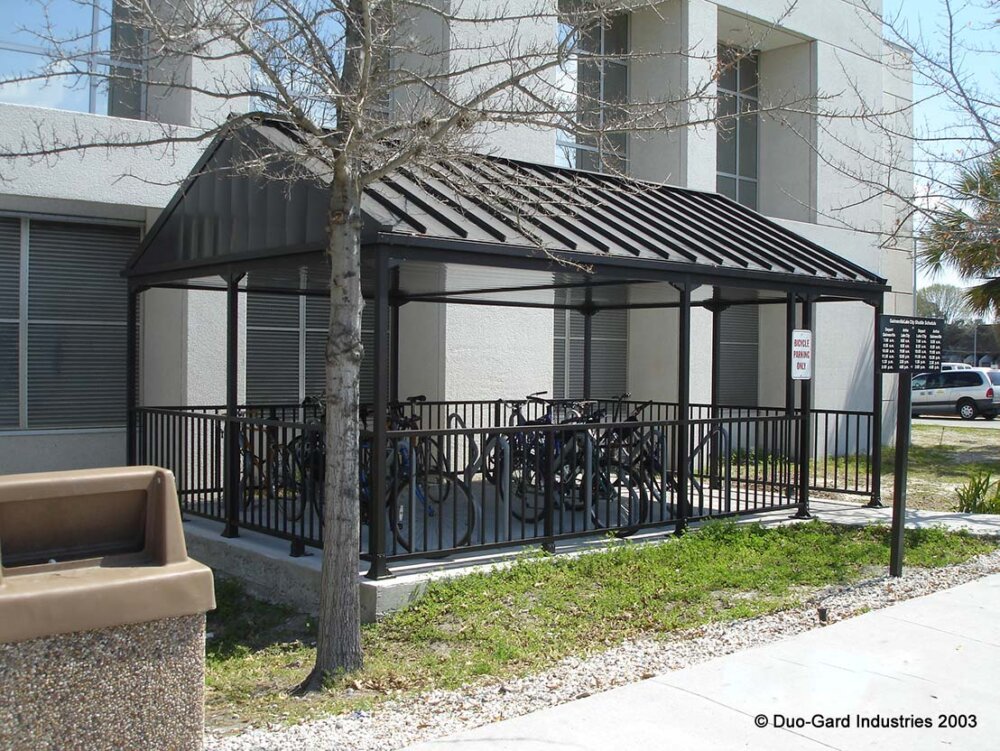

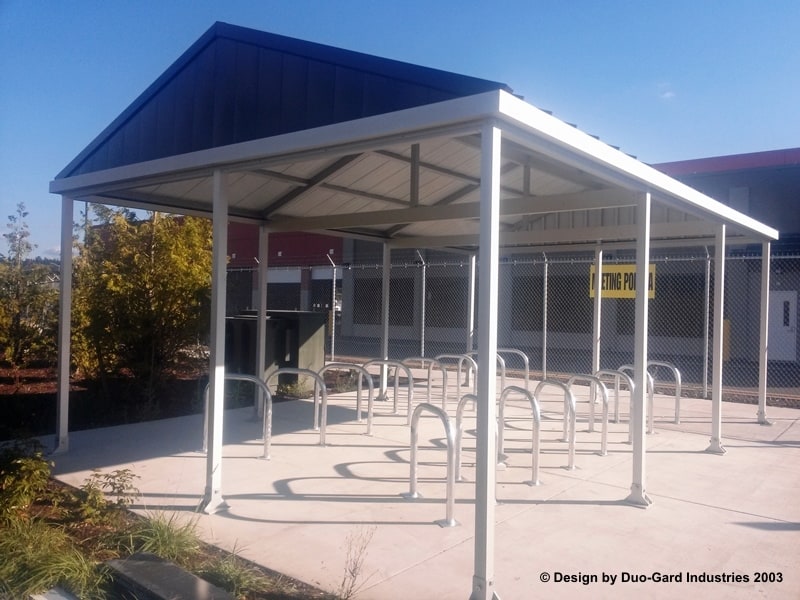

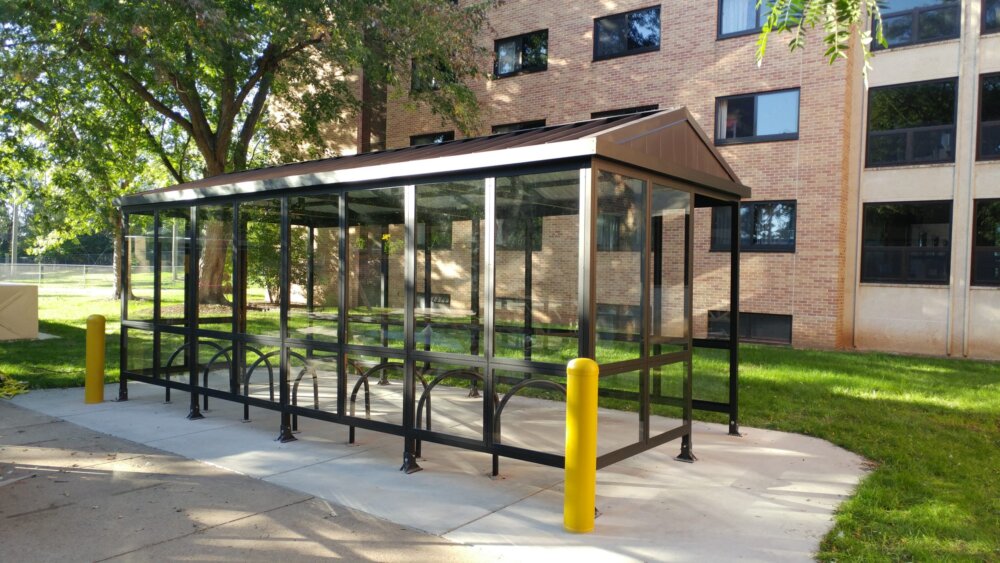

Haven Model - state-of-the-art bike shelter design



Roof

  • Multiwall translucent polycarbonate
  • Variety of standard colors
  • Kynar finish – 25-year warranty
  • Multiwall translucent polycarbonate in opal or clear
  • Variety of custom colors available



Walls

  • Open, railing or fully enclosed wall panels
  • Door/Secure entry available
  • Polycarbonate
  • Safety glass
  • Mesh – stainless steel or aluminum
  • Perforated metal



Frame

  • Aluminum framing uniform standard sizes
  • Dark bronze anodized, clear anodized or powder coat finishes available
  • Anchor – surface mounted
  • Open air canopy or enclosed, and secured options
  • PE Stamps available for no additional charge



Optional Features

  • Standard lighting packages
  • Photovoltaic solar lighting packages
  • Bike Racks
  • Benches
  • Bike Repair Stations



Standard Model Benefits

  • Designed to address specific bike parking needs
  • Pre-engineered bike shelters
  • Constructed with readily available, standard materials
  • Cost-effective bicycle storage
  • Modular design, easily customizable



Available Upon Request

  • Project Pricing
  • Specifications
  • CAD Drawings
  • Bike Parking Layouts
  • Complimentary bike parking plans
  • Technical Product Data



Sizes & Parking Capacities

18″ Rack Spacing

12′ x 18’  22 Bikes

12′ x 24’ 28 Bikes

12′ x 36′ 44 Bikes

12′ x 48′ 56 Bikes

30″ Rack Spacing

10′ x 18’ 12 Bikes

10′ x 24’ 16 Bikes

10′ x 36′ 26 Bikes

10′ x 48’ 34 Bikes

16′ x 18’  24 Bikes

16′ x 24′ 32 Bikes

16′ x 36’ 52 Bikes

16′ x 48′ 72 Bikes

36″ Rack Spacing

10′ x 18’  10 Bikes

10′ x 24’  14 Bikes

10′ x 36′ 22 Bikes

10′ x 48’ 30 Bikes

16′ x 18’  20 Bikes

16′ x 24′ 28 Bikes

16′ x 36’ 44 Bikes

16′ x 48′ 60 Bikes
